Combustion IC Analyzers (S, Fl, Cl, Br, I, & PFAS)

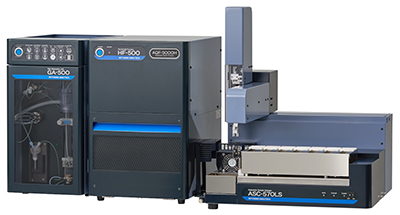

AQF-5000H Automatic Quick Furnace for Combustion Ion Chromatography
Features
USER-FRIENDLY SOFTWARE
Newly designed software with improved user experience.
WIDE CONCENTRATION RANGE ANALYSIS
Newly designed absorption tube for easy switching between applications in a wide range of concentrations. Advanced liquid handling with possiblity for multiple analysis with different dilutions out of one combustion/absorption. Sample collector add on for storage and further analysis.
PLUG-IN OPTION DESIGN
Optional units can be integrated directly into the absorption unit, combining smart appearance, quick upgrade possibility and easier maintenance.
SWITCHING TWO SOLUTIONS FOR ABSORPTION SOLUTION
Automated switching between applications requiring pure water or requiring additives.
EASY, SECURE AND REPEATABLE COMBUSTION
Easily customizable combustion programs that provide reliable combustion with full recovery.
HIGHLY SENSITIVE AND ACCURATE ANALYSIS
Highly sensitive and accurate analysis is enabled by optimizing all components for low instrument blanks and emphasizing repeatability and precision of all process steps from sample introduction through combustion to keeping the final absorption volume truly constant.
EASY MAINTENANCE
Easy accessibility of all relevant parts including combustion tube ensures minimum downtimes, reduces consumable wear and maintains precision over a long period of time.
PARALLEL OPERATION FOR HIGH THROUGHPUT
Parallel operation of sample preparation (combustion) and ion chromatography (quantification) enables fast cycling times and increases sample throughput (or number of replicates).
Sample introduction | Automated boat control |
---|---|
Sample | Solid, Liquid |
Amount |
1-150mg (solid), 5-100µL (Liquid) |
Sample pyrolysis | High purity quartz tube (ceramic option) |
Ekectric furnace |
Max. 1,100℃, Openable electric furnace, 2 heating zones (Temperature individually controlled) |
Injection to IC | Loop 100µL (5, 20, 50, 200, 500, 1000µL option) |
Tubing material | Fluoro-resin (low blank), PEEK |
Signal output | Contact signal to start Ion Chromatograph) |
Gas |
Argon (purity 99.98% or higher, 0.3±0.1MPa) Oxgen (purity 99.98% or higher, 0.3±0.1MPa) |
Power supply |
AC100-240VAC, 50/60Hz |
AQF-2100H (Auto Quick Furnace) with Nittoseiko’s GA-100 (Gas Adsorption Unit)
Nittoseiko has applied its vast knowledge and years of expertise in analytical combustion techniques in developing the Combustion Ion Chromatography method and AQF-2100H. The end result is a powerful, robust, flexible and reliable analytical system applicable to solids, liquids, gases and LPG’s.
The AQF-2100H and CIC technique is an ideal alternative to existing cumbersome, dangerous manual methods and techniques. The full automation of ASTM, ISO, DIN, JIS and UOP methodologies is now possible with the AQF-2100H and CIC System.
Features
- Measure fluorine, chlorine, bromine and sulphur simultaneously with one instrument
- Replaces Wickbold, oxygen bombs and other dangerous combustion methods
- Interfaces with ANY manufacturer's ion chromatography system
- Fast analysis time; sample results in under 12 minutes
- Fully automate sample preparation and analysis with one system
- Solid and liquid autosamplers available
- Measure solids, liquids, gases and LPGs with one instrument
Typical Applications
- Petrochemical, refinery products & fine chemicals
- Gases & LPGs
- Pharmaceuticals & lyopholized proteins
- Plastics, polymers & rubber
- Consumer products & testing
- Gasoline, diesel & jet fuel
- Ethanol, biodiesel & alternative fuels
- ASTM D7359 - 08 Standard Test Method for Total Fluorine, Chlorine and Sulphur in Aromatic Hydrocarbons and Their Mixtures by Oxidative Pyrohydrolytic Combustion followed by Ion Chromatography Detection (Combustion Ion Chromatography-CIC)
