2900M Online Monitor & Control System

2900M Online Monitor & Control System

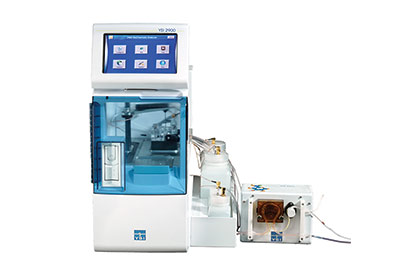

The YSI 2900M Online Monitoring & Control System featuring the YSI 2960 Online Sampler is a key and reliable partner for the monitoring and optimization of your bioprocess. The YSI 2960 Online Sampler automatically draws fluids from your bioreactor and delivers samples directly to the YSI 2900 Biochemistry Analyzer for testing. Sampling is done aseptically as lines are flushed and antiseptic is kept in them after each draw. The system supports connection with RS232, Ethernet, and OPC. The YSI 2900M Online Monitoring & Control System provides a simple and reliable solution for running your bioprocess automatically with little risk of contamination.

Features and Benefits:

  • Accurate results in less than 1 minute
  • Automatic online aseptic sampling for unattended operation
  • Maintains sterility of process
  • Autoclavable components for sterilization with your bioreactor
  • Connects to process management instruments via RS232, Ethernet, or OPC
  • Searchable database allows you to access your stored results quickly
  • Slim modular design occupies small lab footprint

PDFProduct Brochure

PDFSelection Guide


Specifications

Benchtop Yes
Certifications CE, RoHS, ETL
Compliance

21 CFR, Part 11
GAMP® 5

Connectivity / Communications Ethernet, USB
Graphic Display Yes
Measurement Range Glucose: 0.05-25 g/L, Lactate: 0.05-2.70 g/L, Glutamate: 15-1460 mg/L, Glutamine: 30-1169 mg/L, Glycerol: 0.75-40 g/L, Xylose: 0.5-30 g/L, Choline: 5-450 mg/L, Hydrogen Peroxide: 3-300 mg/L, Sucrose: 0.1-25 g/L, Ethanol: 0.04-3.2 g/L, Ethanol-HC: 0.5-40 g/L, Methanol: 0.1-2.5 g/L, Lactose: 0.05-25 g/L, Galactose: 0.1-25 g/L
Memory Yes
Monitoring Yes
Operating Temperature 15-35°C
Parameters Measured Glucose, Lactate, Glutamate, Glutamine, Glycerol, Xylose, Choline, Hydrogen Peroxide, Sucrose, Ethanol, Methanol, Lactose, Galactose
Power 50-60 Hz, 100-240 VAC
Precision Application specific, typical CV <2%
Unit of Measure g/L, %, mg/dL, mg/L, mmol/L
Warranty 1 year
