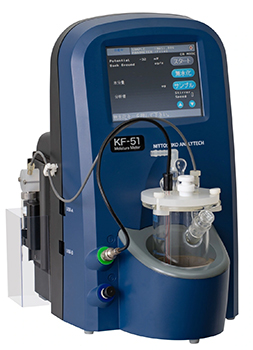

KF-51 Moisture Meter
Portable type moisture meter with easy operation. It can be used in a variety of situations such as laboratories and manufacturing sites. This system can measure the moisture content of various samples such as foods, pharmaceuticals and various oils from trace to high concentration range. It is possible to analyze samples that are difficult to dissolve in reagents by connecting a vaporizer. This is an epoch-making moisture meter that performs two roles volumatic titration and coulometric titration.
Features
Automatic measurement start function
This function detects sample injection and automatically starts the measurement. No need to press the start button.
Automatic reagent dispersing system
Dispense and dispense reagent with one push of button. Excluding catholyte in cathode chamber.
Other functions
The measurement data can be written to USB memory as a text-format file. You can manage the output data with Excel® etc.
Carrying case
The light carrying case will hold the CA/KF-51 main unit and battery. Can be carried easily.
Specifications
| Method | Volumetric Karl Fischer Titration |
|---|---|
| Measurement range | 0.1 mg to 999.9999mg H2O |
| Titration flask | 150 mL |
| Buret | Syringe type: 5 mL Accuracy: ±0.01 mL (when dispending 4 mL) |
| Display | 5.7 - inch colour LCD touch screen |
| External input and output | Electric balance: Automatic input of weight USB-A: USB memory USB-B: PC connect with TV-51 |
| Power supply | AC 100 / 115 / 230 / 240 V (50 / 60 Hz) 80VA DC 240 V (when using commercial batteries) |
| Dimensions |
Approx. 230 (W) × 350 (D) × 360 (H) mm |
