Anion Suppressor Ion Chromatograph
The HIC-ESP is an anion suppressor ion chromatograph with built-in electrodialytic suppressor, boasting the same low carryover and excellent injection precision characteristic of Shimadzu HPLCs to bring you highly-reliable results. The newly developed anion suppressor prevents peak spreading and achieves high sensitivity, providing stable functionality even over long periods of use.
The HIC-ESP is suitable for applications in a wide range of fields including environmental science, medicine, chemistry and food science.
High sensitivity and reliability
With a unique design where the eluent flow path bends back around, combined with optimized dialytic, the new ICDS™-40A anion suppressor unit achieves achieves higher efficiency and stable suppressing while maintaining a small internal volume (patent pending). Combining this suppressor with high-quality HPLC units enables highly-reliable analytical results.
The ICDS-40A achieves high sensitivity, reliability and robustness

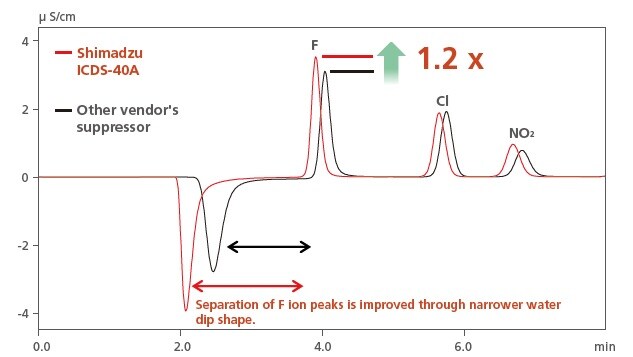

The ICDS-40A reduces peak spreading, increasing the sensitivity for components with low retention such as fluorine ions, and improves water dip separation, enabling highly-reliable results. Using an electrodialytic system which can carry out analysis and regenerations simultaneously, the analysis cycle time can be reduced and consecutive regeneration achieved, increasing the flexibility of the analysis time settings. In addition, the suppressor uses waste solution from the detector as regenerating solution, making environmentally-unfriendly regenerating solutions such as sulfuric acid unnecessary.

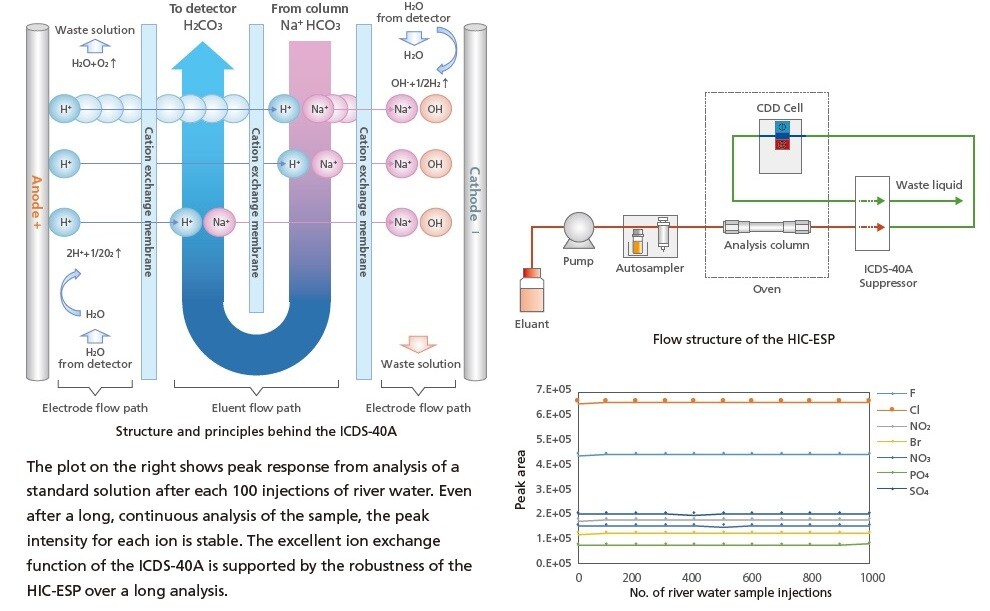

The ICDS-40A replaces sodium ions in the eluent with hydrogen ions with high efficiency using hydrogen ions obtained by electrolyzing water.
Compact design opens up lab space

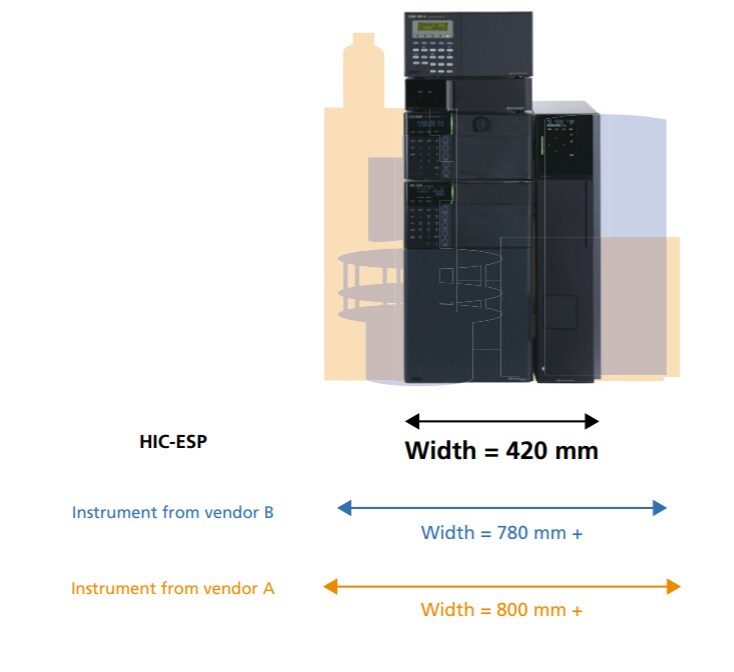

The HIC-ESP system is just 420 mm wide, taking up significantly less space on the bench.
Complete support and ease-of-use throughout your workflow

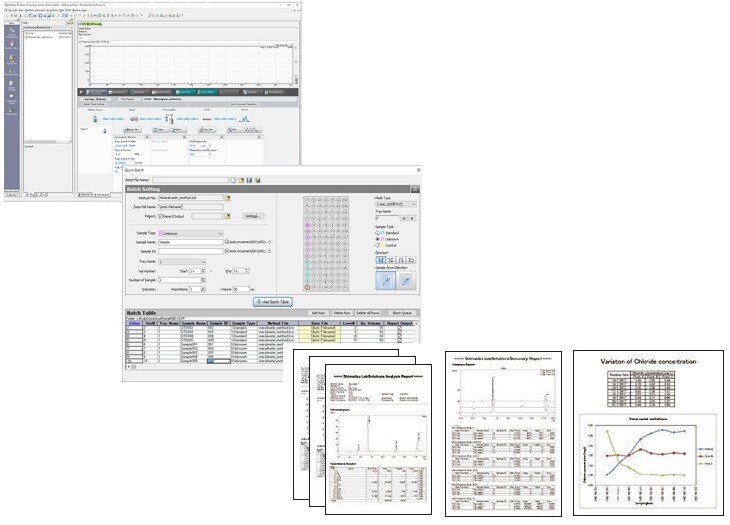

Manage analysis, data processing and reports all from LabSolutions™
Settings for HIC-ESP analysis parameters, continuous analysis, auto-shutdown, data processing, and report creation can all be managed from LabSolutions. Data integrity can be handled with the addition of LabSolutions DB and LabSolutions CS.
