Labnet Multigene Mini Personal Thermal Cycler. 24 x 0.2 mL tubes; programmable temp. range 4º to 99ºC; Temp. accuracy/uniformity ±0.3ºC/±0.5ºC at 55ºC; Max. heating/cooling rate 5ºC/4ºC per second by Peltier method; heated lid temperature 105ºC; program m

logo

ERP
NL-TC-020-24
Regular Price CA$7,546.00 Special Price CA$6,791.40
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

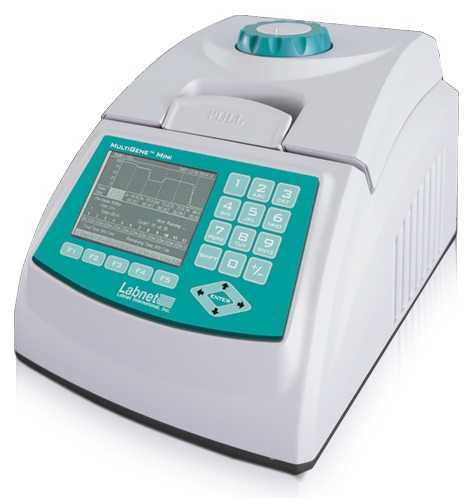

Labnet's MultiGene Mini personal thermal cycler is a compact and lightweight thermal cycler, but don't let its small size fool you. This thermal cycler is packed with features typically found only on larger thermal cyclers.

  • Fast ramping - up to 5°C/second
  • Intuitive graphical programming
  • Lightweight and compact
  • Interchangeable blocks - 24 x 0.2 ml and 18 x 0.5 ml
  • Economical - half the price of a full size unit

Excellent accuracy and uniformity combine with fast ramping rates to provide quality results. An algorithm calculates sample temperature, based on volume, to control heating and cooling of the block. This means that samples reach programmed temperatures quickly, without any overshoot or lagging. Powerful Peltier units provide ramping rates as fast as 5°C/second. Programming the MultiGene Mini is simple and intuitive. The control pad combines function keys, a key pad and arrow keys for easy navigation and entering of parameters. The large graphical display is easy to read.

Successive Time and Temperature Increments

In addition to the standard parameters of time and temperature, the software also allows for successive time and temperature increments and decrements (for touchdown amplification and auto-extension), auto-restart after a power failure, end of cycling elongation steps and extended soaks at 4°C. One hundred programs, each with up to nine segments, can be stored in memory.

The MultiGene Mini Personal Thermal Cycler is available with either a 24 x 0.2 ml tube block or 18 x 0.5 ml tube block. Blocks are easily interchanged. Units come standard with an adjustable heated lid. The lid features a slip gear to provide proper compression to prevent sample evaporation without deforming the tubes.

Block capacity 24 × 0.2 mL tubes
Temp. control range 4° to 99°
Max. heat/cool rate 5°C per sec/ 4°C per sec
Accuracy/uniformity ±0.3°C/±0.5°C at 55°C
Heated lid temperature 105°C
Max. number of cycles 99
Temperature range 30°C to 99°C
Max. number segments 9
Max. holding time/step 99 minutes 59 seconds
Program memory up to 100 programs
Dimensions (W × D × H) 21.8 × 28.5 × 17.8 cm
Weight 7.1 lb/3.2 kg
Electrical 230V~ or 120V~, 50/60 Hz
