4 Cu.Ft. Vaccine Freezer, ADA Height (31.75"). Temperature Range: -30 to -10ºC. Warranty: 2 years parts and labor/5 years compressor.
The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.
Free Technical Support
In-depth and personal over-the-phone support at no cost.
Quality Parts & Accessories
Mandel uses manufacturer-specified parts for all repairs and maintenance.
Details
Accucold's Pharma-Vac Performance Series are upright freezers are designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines.

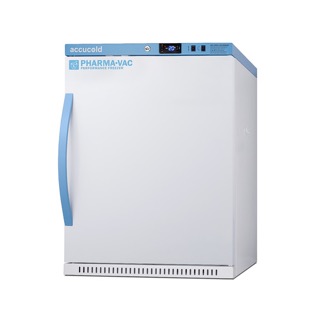

The AFZ5PVBIADA is a 3.88 cu.ft. all-freezer with a temperature range of -30°C to -10°C as recommended for a variety of vaccines and pharmaceuticals. It is designed for freestanding or recessed installation and sized just under 32" high to fit under lower counters complying with ADA guidelines for accessibility. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.
Inside, this freezer features adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. Static manual defrost cooling helps to ensure stable temperature conditions.
The AFZ5PVBIADA comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The user-reversible door ships with a right hand swing and self-closing function, while a factory-installed lock provides security as needed, with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.
Designed with hydrocarbon refrigerant, Accucold Performance series freezers provide an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as matching refrigerators, are also available.
NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
Features
Performance Series freezer
Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
Purpose-built design
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
ADA Compliant
Just under 32" tall designed to fit under ADA compliant counters
Recessed or freestanding use
Versatile design allows recessed installation under counters or freestanding use
+/-1ºC Variation
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Commercial design
Meets UL-471 commercial standards
Adjustable temperature
Intuitive controls let you adjust the interior temperature between -30°C to -10ºC
Temperature alarm
Visual and audible alarms alert if the interior temperature rises or falls out of set range
Remote alarm contacts
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Manual defrost operation
Static cooling system for an efficient and stable interior
Access port
Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Open door alarm
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Audible power failure alarm
Battery-powered alarm sounds if the power connection is interrupted
Sensor failure alarm
Audible and visual alarm warns if the sensor is disrupted
Password protection
Control panel requires password entry to adjust the parameters beyond the set point
Microprocessor control panel
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Resettable min/max display
Control panel provides a readout of the low and high temperatures in 15 minute increments
Factory-installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Antimicrobial silver ion-coated handle
Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Adjustable plastic-coated wire shelves for improved circulation
Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Durable interior
Walls are constructed from white powder coated metal for added strength and improved temperature retention
Interior light
Energy efficient LED lighting with internal on/off switch
Self-closing door
Added protection in busy settings
Reversible door
User-reversible door swing for added flexibility
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Fully finished white cabinet
Allows the unit to be used freestanding
Extended warranty
2 years parts and labour/5 years compressor
Eco-Friendly
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Usage stickers
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Matching refrigerator
Pair with Accucold ARS62PVBIADA (solid door) or ARG61PVBIADA (glass door) as a stackable or side-by-side set
Versatile design
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Width with Door Open | 23.88" (61 cm) |
| Nominal Depth | 25.0" (64 cm) |
| Depth | 25.0" (64 cm) |
| Depth with Handle | 26.75" (68 cm) |
| Depth with door at 90° | 47.0" (119 cm) |
| Capacity | 3.88 cu.ft. (110 L) |
| Defrost Type | Manual |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 125.0 lbs. (57 kg) |
| Parts & Labour Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101102887 |
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 22.5" (57 cm) |
| Interior Width | 18.0" (46 cm) |
| Interior Depth | 18.0" (46 cm) |
| Shelf Type | Wire |
| Shelf Qty | 4 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Refrigerant Type | R290 |
| Refrigerant Amount | 1.73 oz. |
| High Side PSI | 280.0 |
| Low Side PSI | 130.0 |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 18.0" (46 cm) |
| Compressor Step Depth | 7.13" (18 cm) |
| Temperature Range | -30 to -10ºC |
