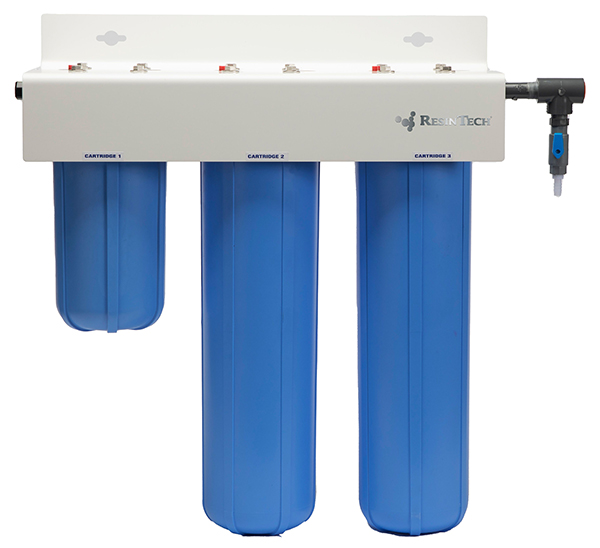

The Hydra High-Capacity DI System is a pre-assembled cartridge system that provides deionized water using a staged filtration process.
Water purification is provided using a 3-step process. Stage (1) removes particles greater than 5 micron, chlorine, and organics. Stages (2 & 3) are deionizers designed to remove dissolved minerals.
The Hydra High-Capacity DI series includes all cartridges and resistivity light for a total turnkey system. Designed for less corrosive applications, the Hydra high-capacity DI configuration provides water quality better than 50 KiloOhms. This is ideal for scale reduction and non-stainless steel piping systems.
Appropriate applications include: General deionization, battery water Filling, humidification, hydrogen generator, glassware rinse, glassware washer, sterilizers.
Pressure: 20 – 90 PSIG (changed values)
Temperature: 100° F Max
Voltage: 120 V
Connections:
Inlet – 3/8” OD Tubing
Outlet – ½” Hose Barb
Materials:
Housing – Polypropylene
Bracket – Painted Steel
