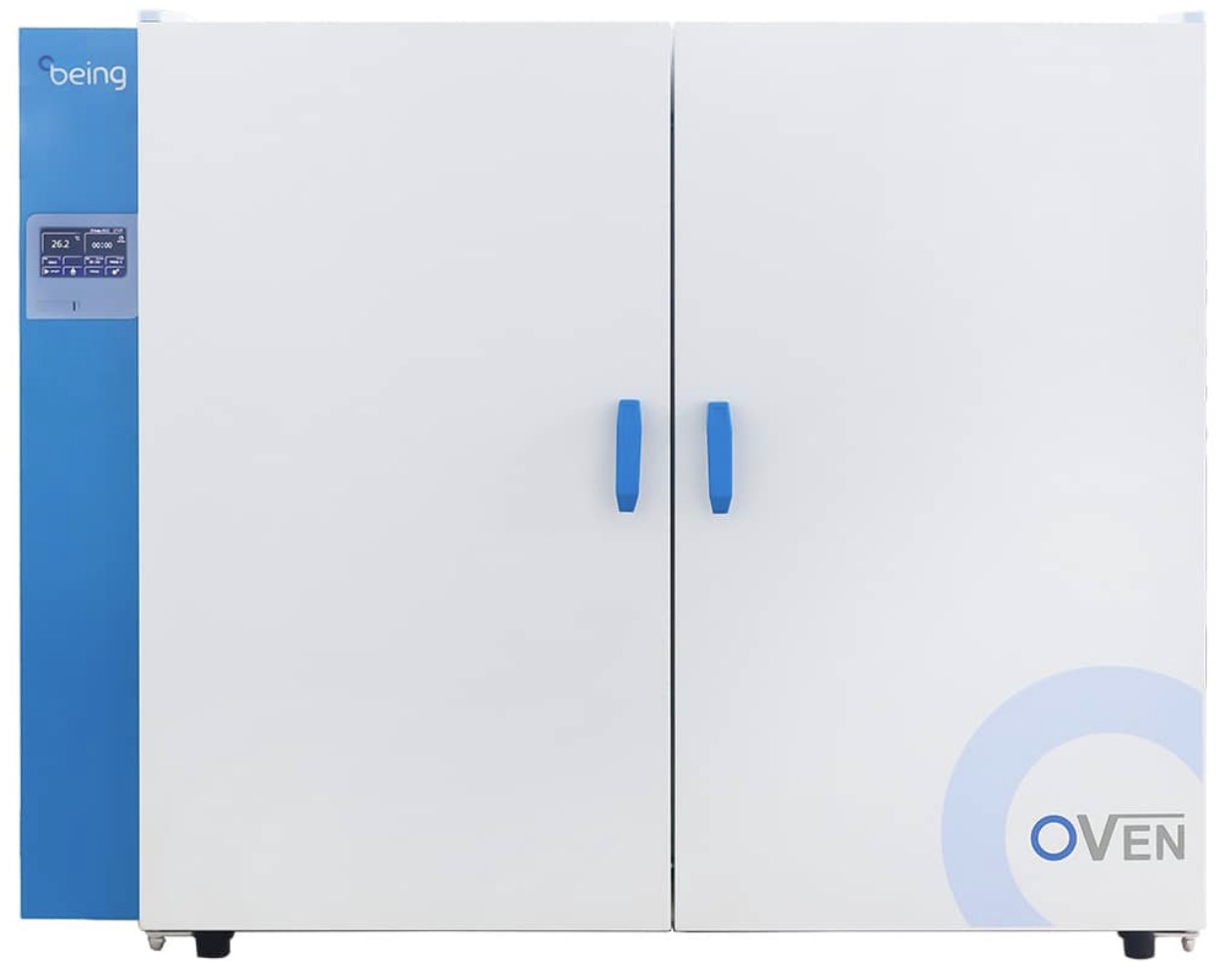

Forced Air Drying Oven, BOF-400T, 220VAC,50/60Hz

Details

Features

Specifications

GET IN TOUCH WITH US TODAY!

Performance and Features

Convenience

Safety

logo

ERP

BEI-BO212400C

Skip to the end of the images gallery

Skip to the beginning of the images gallery

QUANTITY

CA$9,914.00

Add to Wish List Add to Compare

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

The BOF Forced-air Convection Drying Oven series distributes heat evenly inside the chamber with an integrated fan. This is ideal for drying protocols with very tight temperature requirements.

The 4.3-inch touchscreen controller provides fast, accurate, and uniform heat displacement. Users can preset 8 periods and 8 steps for a total of 64 programs.

Temperature, time and fan speed can be set and programmed at the same time. The doors are engineered with airtight sealing and inner chambers are designed with corrosion resistant stainless steel. Safety alarms are installed for – overtemperature, over current protection, and temperature deviation.

These ovens provide excellent temperature stability and reproducibility for all your desired application needs ensuring maximum efficiency, safety, and ease of use.

Temperature Range: Amb+10°C - 300°C
P.I.D temperature controller provides accurate and reliable temperature control
Mechanical convection facilitates hot air circulation
Adjustable Exhaust Port/Vent
Extended Life Silicone Rubber Gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed
NEW colour touchscreen controller
USB data collection port

Variety of volumes to choose from (30 L to 400L)
Inner chamber is made from corrosion-resistant mirror stainless steel
Round curved inner angle is easy to clean
Anti-skid shelf design, easy to operate by single hand

Auto Start Feature after power loss/return
Temperature deviation alarm
Over temperature set point and shutdown with alarm
Independent over temperature limit controller for added safety
Over-current alarm and shutdown

Stackable	No
Internal Volume	14.1 cu ft (400 Liters)
Temperature Range	Ambient+18℉ to 572℉ Ambient+10℃ to 300℃
Temperature Stability	±0.5℃
Uniformity at 100℃	±3.5
Heating Rate to 100℃	40 mins
Display Resolution	0.1
Maximum # of Shelves	16
Test Hole	Ø5mm
# of Shelves	3
Max. Load per Shelf	44.1 lb / 20Kg
Internal Dimension (WxHxD)	39.3×31.4×19.6 (inch) 1000×800×500 (mm)
External Dimension (WxHxD)	50.6×41.7×29.6 (inch) 1285×1060×750 (mm)
Net Weight	463.0 lb / 210Kg
Timer (hh:mm)	00:01 – 99:59
Electrical Requirement	220V 60Hz 1Ø
Electrical Plug Type	NEMA 6-20
Power Consumption	3200W
Sensor	PT 100Ω
Warranty	2 years
Certification	ETL
