Forced Air Convection Oven, EOF-50, 1.8 cu ft (50L), Uniformity @ 150℃ ±2.0, 120 V , 2 Shelves included (Max. 6), Warranty: 2 year

logo

ERP
BEI-EO242050U
CA$3,012.00
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

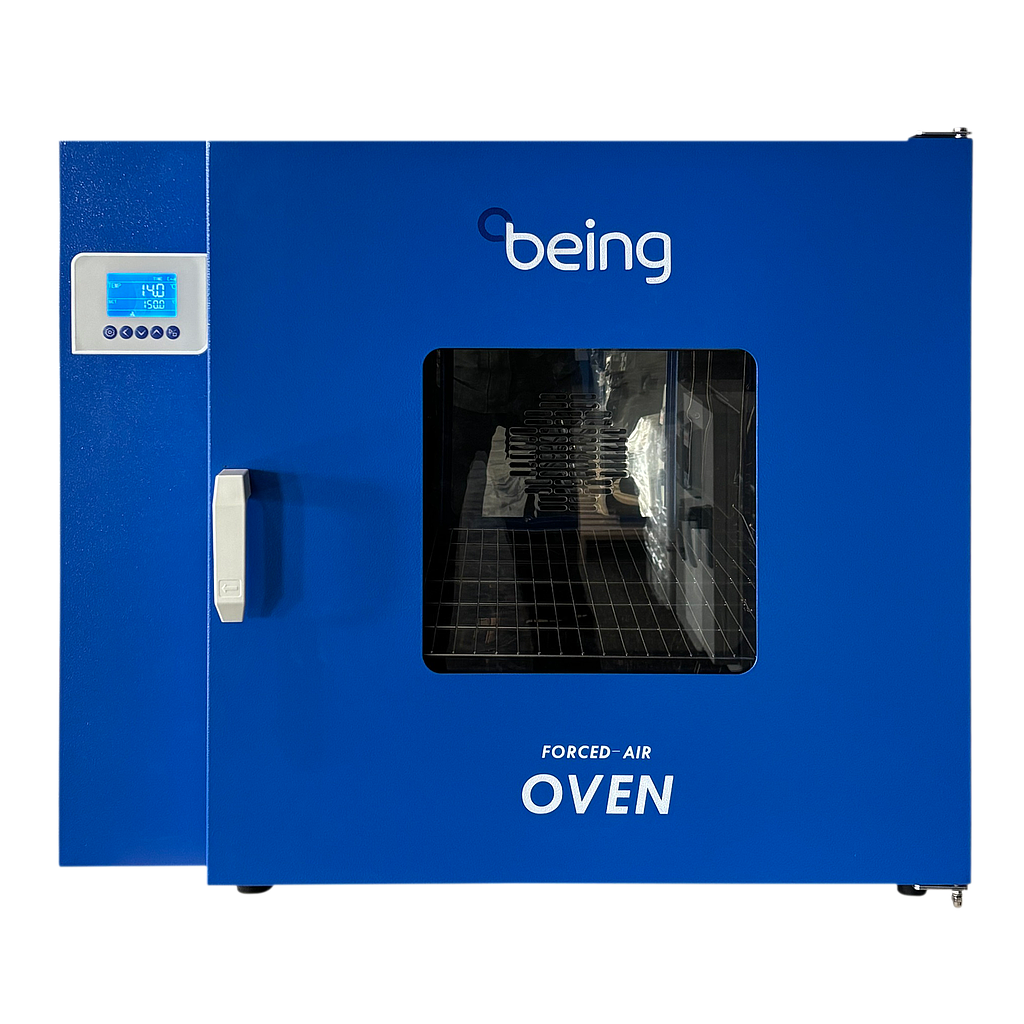

The EOF Forced-air Convection Drying Oven series distributes heat evenly inside the chamber with an integrated fan. This is ideal for drying protocols with very tight temperature requirements.

The BEING E-series professional PID controller has a 3.1-inch easy-to-read, real-time LCD display to select the various fixed-value program functions with all the parameters on a single screen, providing quick and easy setting of temperature, time, and other parameters — and convenient operation.

The doors are engineered with airtight sealing and inner chambers are designed with corrosion resistant stainless steel. Safety alarms are installed for – overtemperature, over current protection, and temperature deviation.

These ovens provide excellent temperature stability and reproducibility for all your desired application needs ensuring maximum efficiency, safety, and ease of use.

Chamber Volume (ft3/ L)

1.8 cu ft (50 litres)

Temperature Range

Ambient+18℉ to 482℉
Ambient+10℃ to 250℃

Uniformity @ 150℃

±2.0

Time to reach 150°C

40min

Temperature Stability

±0.5℃

Display Resolution

0.1

Shelves (Std./ Max.)

2/6

Shelves Loading (lb / Kg)

33 / 15

Internal Dimension

(WxHxD) (in / mm)

16.5 × 13.8 × 15.6
420 x 350 X 395

External Dimension

(WxHxD) (in / mm)

28.3 × 20.5 × 20.9
720 x 520 x 530

Net Weight (lb / Kg)

77 / 35

Soak Timer (minutes)

0 - 5999

Electrical Requirement

120V 60Hz

Electrical Plug Type

NEMA5-15P

Power Consumption

1200W
