Forced Air Convection Oven, EOF-70, 2.8 cu ft (80L), Uniformity @ 150℃ ±2.0, 120 V , 2 Shelves included (Max. 9), Warranty: 2 year

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.
Free Technical Support
In-depth and personal over-the-phone support at no cost.
Quality Parts & Accessories
Mandel uses manufacturer-specified parts for all repairs and maintenance.
Details

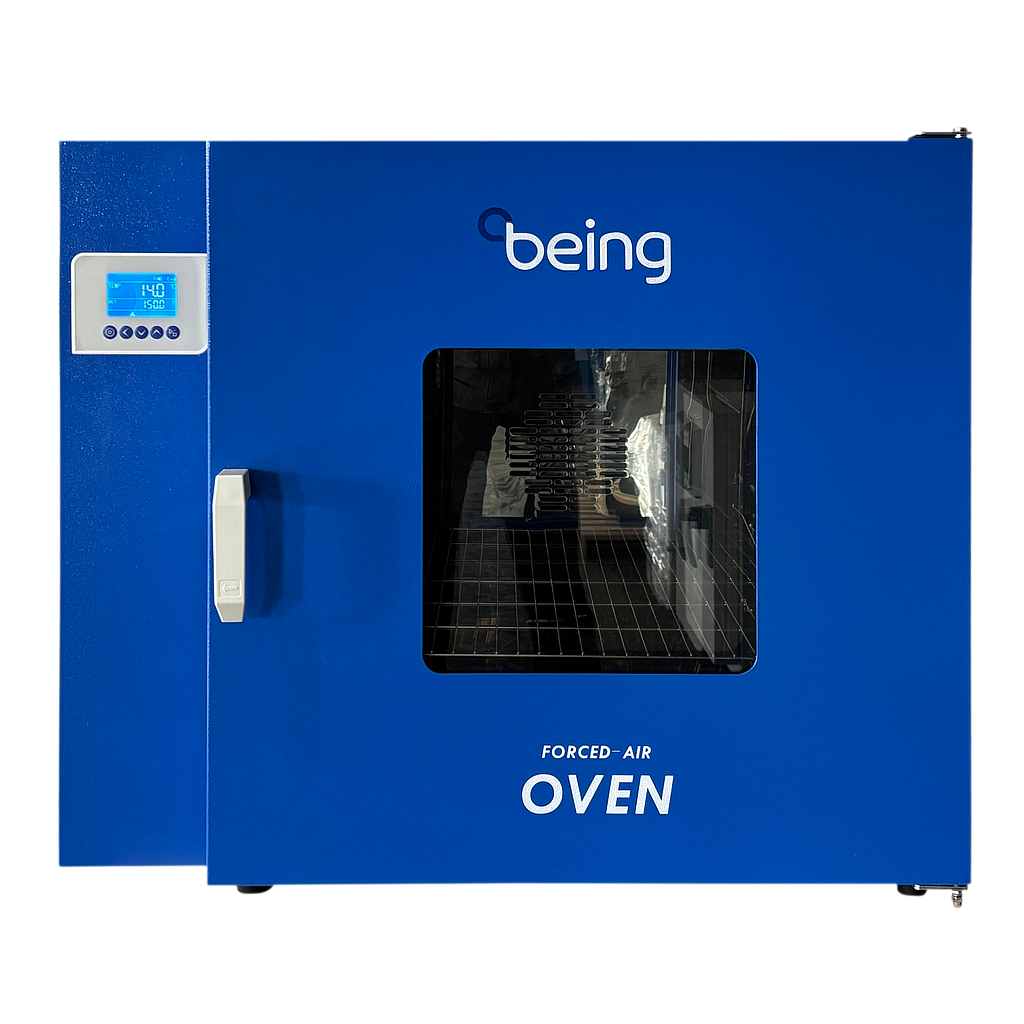

The EOF Forced-air Convection Drying Oven series distributes heat evenly inside the chamber with an integrated fan. This is ideal for drying protocols with very tight temperature requirements.
The BEING E-series professional PID controller has a 3.1-inch easy-to-read, real-time LCD display to select the various fixed-value program functions with all the parameters on a single screen, providing quick and easy setting of temperature, time, and other parameters — and convenient operation.
The doors are engineered with airtight sealing and inner chambers are designed with corrosion resistant stainless steel. Safety alarms are installed for – overtemperature, over current protection, and temperature deviation.
These ovens provide excellent temperature stability and reproducibility for all your desired application needs ensuring maximum efficiency, safety, and ease of use.
Specifications
|
Chamber Volume (ft3/ L) |
2.8 cu ft (80 litres) |
|---|---|
|
Temperature Range |
Ambient+18℉ to 482℉ |
|
Uniformity @ 150℃ |
±2.0 |
|
Time to reach 150°C |
40min |
|
Temperature Stability |
±0.5℃ |
|
Display Resolution |
0.1 |
|
Shelves (Std./ Max.) |
2/9 |
|
Shelves Loading (lb / Kg) |
33 / 15 |
|
Internal Dimension (WxHxD) (in / mm) |
17.7 × 17.7 × 15.8 |
|
External Dimension (WxHxD) (in / mm) |
29.1 × 24.8 × 20.9 |
|
Net Weight (lb / Kg) |
108 / 49 |
|
Soak Timer (hh:mm) |
0 - 99:59 |
|
Electrical Requirement |
120V 60Hz |
|
Electrical Plug Type |
NEMA5-15P |
|
Power Consumption |
1650W |
