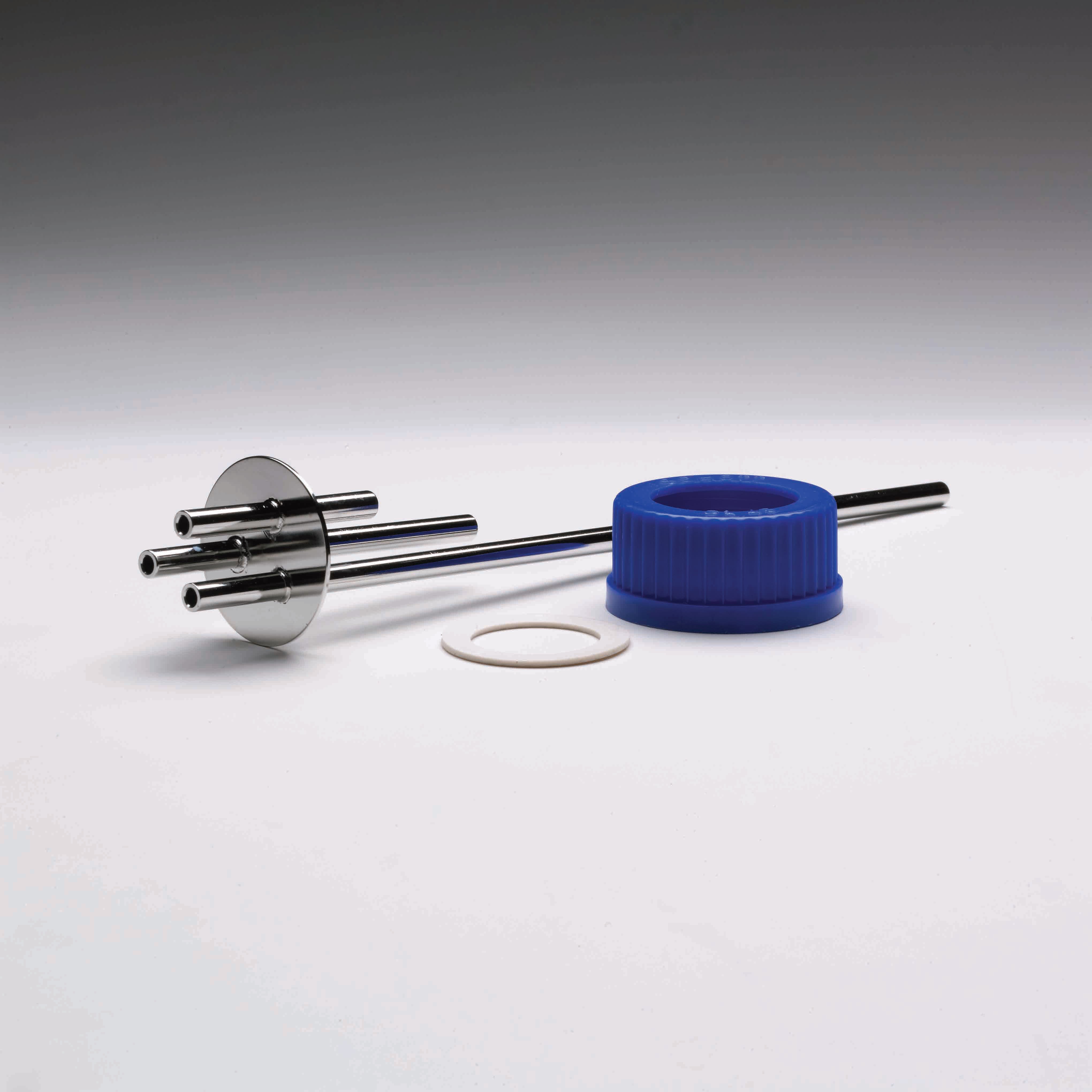

Bellco Glass, Inc - Low Profile Thermowell Assembly 6L For Vertical Overhead Drive Vessels. (Each)

Thermowell assemblies are used to hold inside one tube the rtd temperature sensor that monitors the temperature within the vessel in conjunction with a temperature controller. There are also tubes for addition of media and vent tube.

45mm THERMOWELL ASSY FOR L/P 6L VESSEL, SEAM WELDED - ELECTROPOLISH FINISH, 316L SST MATERIAL, SUPPLY WITH S/CAP (A523-599) & WHITE SILICONE LINER (A523-600), 1- THERMOWELL TUBE: 5/16"OD X .242"ID X 1.0" above x10 9/32" insertion, 1- SIPHON TUBE: 1/4"OD X 5/32" ID X 1.0" above x 10 9/32" insertion, 1- VENT TUBE: 1/4"OD X 5/32" ID X 1.0".
