Bellco Glass, Inc - Bell-Flo Internal Overhead Bearing Assembly, 3L . (Each)

Details

ERP

BEL-1965-83001

Skip to the end of the images gallery

Skip to the beginning of the images gallery

QUANTITY

Regular Price CA$2,190.00 Special Price CA$1,861.50

Add to Wish List Add to Compare

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

Product Name

Availability

List Price

Special Price

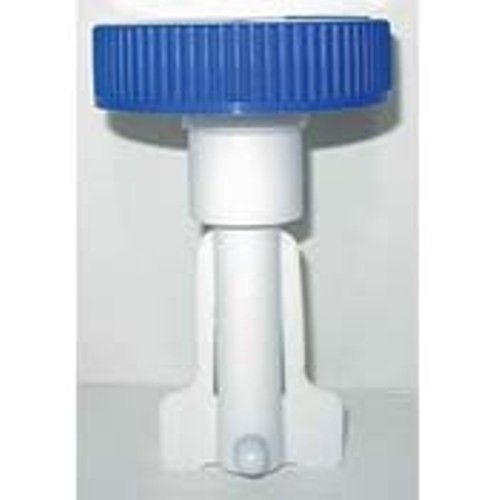

3000mL Bell-Flo™ Internal Overhead Bearing Assembly

Internal Overhead Bearing Assembly Specifications:

Consists of screw cap, cap seal, sealing ring, compression washer, ball bearing spacer, ball bearing, bearing thimble, magnet, o-ring, magnet holder, shaft, & paddle

100mm PP Blue Screw Cap: 82.6mm OD x 22.4mm tall

PTFE Cap Seal: 95.3mm OD x 25mm long

Red Silicone Sealing Ring: 86mm OD x 76.2mm ID x 6.1mm thick

White Silicone Compression Washer: 27.0mm OD x 12.7mm ID x 1.6mm thick

PTFE Ball Bearing Spacer: 19.1mm OD x 12.7mm ID x 22.4mm deep

PBT & SST Ball Bearing: 19.1mm OD x 6.4mm ID x 7.1mm deep

PTFE Bearing Thimble: 31.8mm OD x 19.1mm ID x 38.1mm long

PTFE Magnet: 12.7mm OD x 76.2mm long

Silicone O-ring: 7.9mm OD x 4.8mm ID

PTFE Magnet Holder: 19.1mm OD x 177.8mm long

316L SST Shaft: 6.4mm OD x 190.5mm long

PTFE Paddle: 82.6mm wide x 177.8mm long x 1.6mm thick
