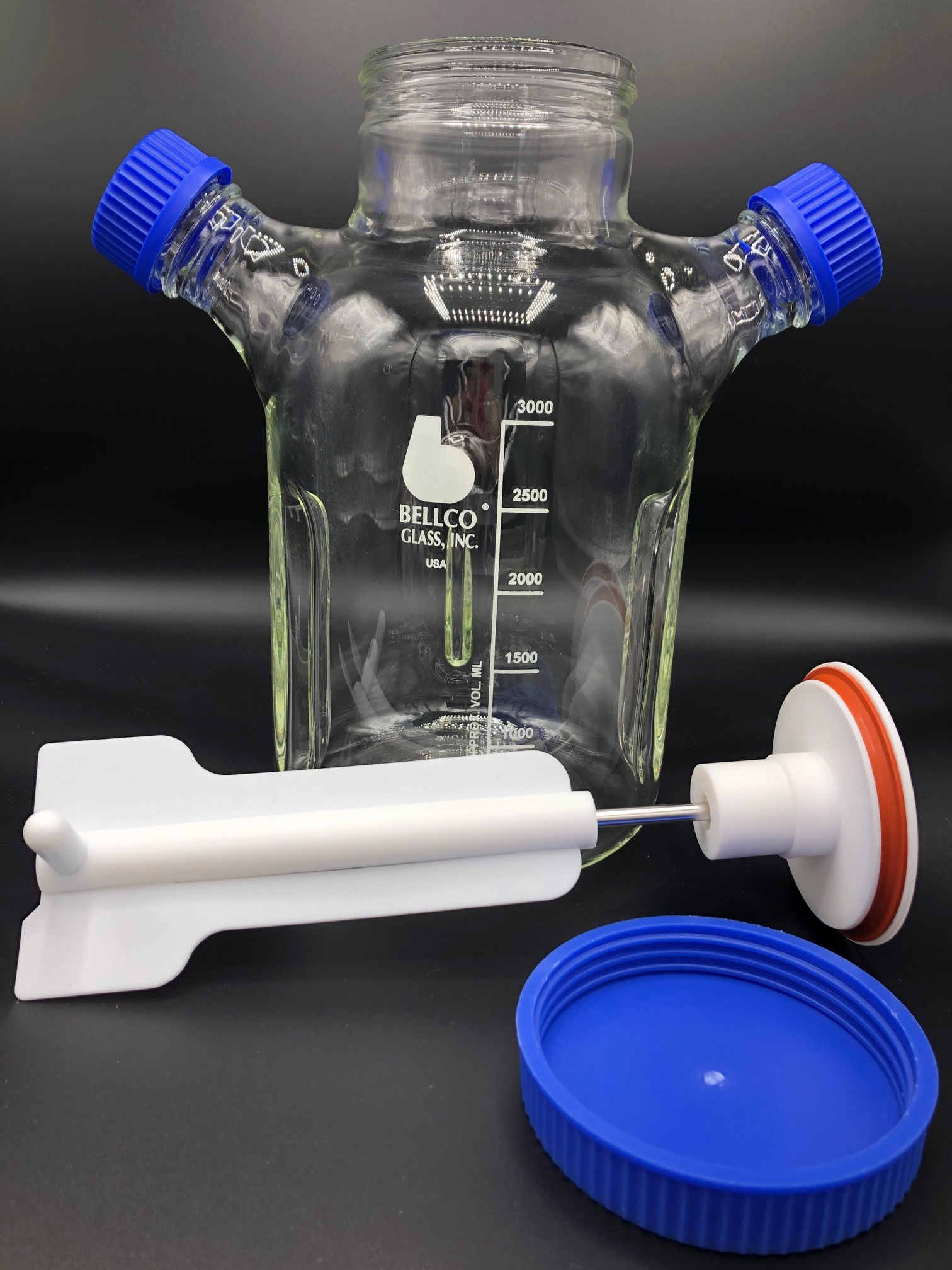

3000mL Bell-Flo™ Complete
Flask Specifications:
Material: Type 1 Class A Borosilicate Glass
Dimensions: 165mm OD x 290mm Overall Height, 252.7mm across sidearms
Two 45mm sidearms angled 53⁰ off the centerline
One 100mm Screw Thread Center Neck
Indented Bottom: Prevents dead spot under impeller
Side Baffles: Three equally spaced baffles, 100mm long x 9mm deep
Supply with: Two 45mm PP Blue Screw Caps & PP Blue Pouring Rings
Internal Overhead Bearing Assembly Specifications:
Consists of screw cap, cap seal, sealing ring, compression washer, ball bearing spacer, ball bearing, bearing thimble, magnet, o-ring, magnet holder, shaft, & paddle
100mm PP Blue Screw Cap: 82.6mm OD x 22.4mm tall
PTFE Cap Seal: 95.3mm OD x 25mm long
Red Silicone Sealing Ring: 86mm OD x 76.2mm ID x 6.1mm thick
White Silicone Compression Washer: 27.0mm OD x 12.7mm ID x 1.6mm thick
PTFE Ball Bearing Spacer: 19.1mm OD x 12.7mm ID x 22.4mm deep
PBT & SST Ball Bearing: 19.1mm OD x 6.4mm ID x 7.1mm deep
PTFE Bearing Thimble: 31.8mm OD x 19.1mm ID x 38.1mm long
PTFE Magnet: 12.7mm OD x 76.2mm long
Silicone O-ring: 7.9mm OD x 4.8mm ID
PTFE Magnet Holder: 19.1mm OD x 177.8mm long
316L SST Shaft: 6.4mm OD x 190.5mm long
PTFE Paddle: 82.6mm wide x 177.8mm long x 1.6mm thick
