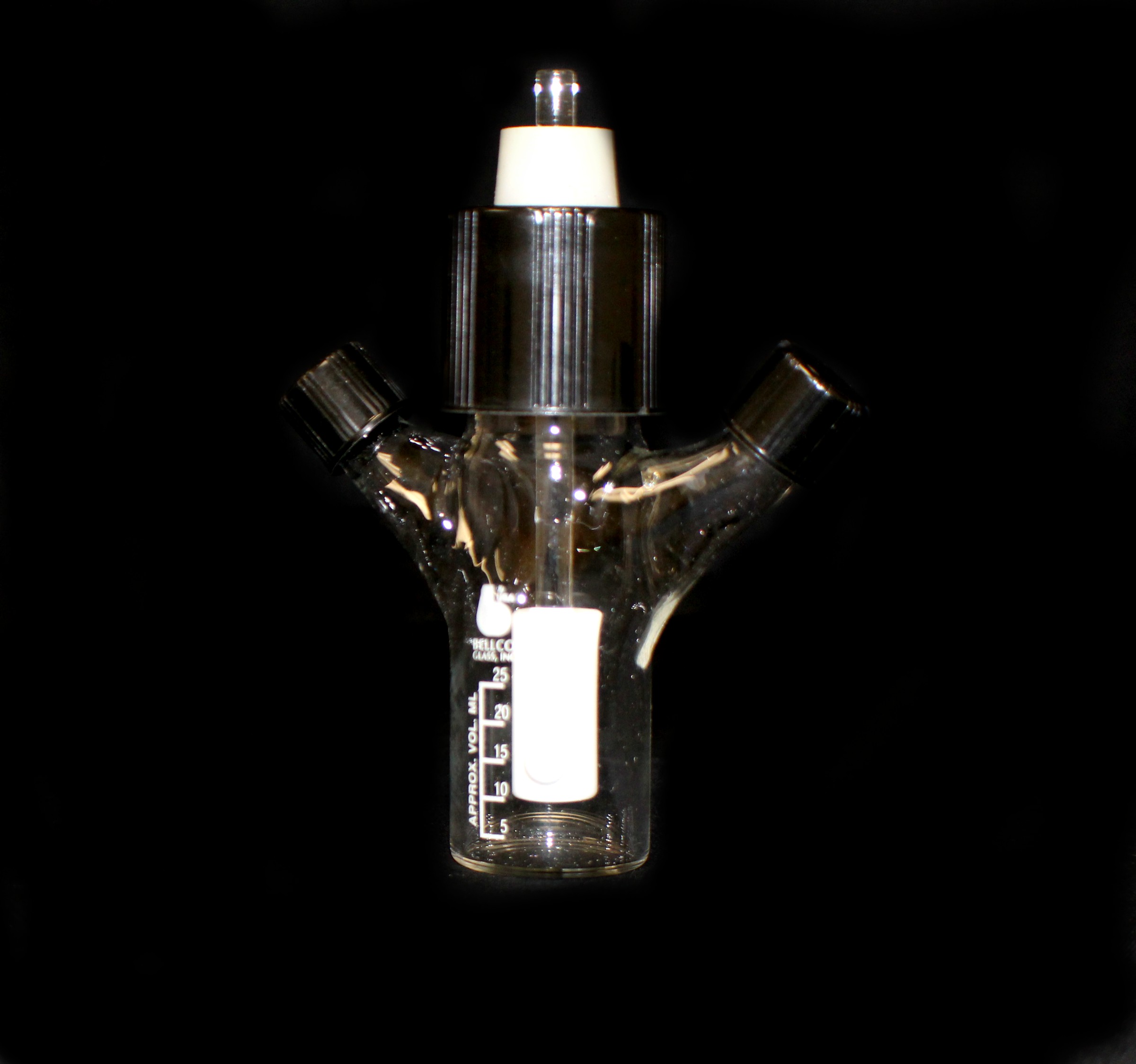

Bellco Glass, Inc - Adjustable Hanging Bar Spin Flask Complete, 25mL . (Each)

Description: Adjustable Hanging Bar Spinner Flask Complete, 25ml

Bellco Adjustable Hanging Bar Spinner Flasks were designed for the efficient growth of suspension cells at low speeds. This flask is manufactured of medium-walled borosilicate glass tubing with black phenolic screw caps. The hanging spinner is adjustable and useful over a wide range of stirring speeds. The 1967-style spinner includes a center screw cap with a stopper for mounting the glass impeller shaft. Adjustable Hanging Bar Spinner Flask consists of: Flask, Impeller Assembly, Impeller Glass Shaft, and Cap Assembly.

Flask Specifications [1967-10025]:

Material: Type 1 Class A Borosilicate Glass

Dimensions: 38.1mm OD x 120mm Overall Height,

Two 18mm Sidearms angled 40° offset center

One 38mm Screw Thread Center Neck

Flask has flat bottom – no dimple

Graduations: 5mL to 25mL, every 5mL – White Ink (Approx Volumes)

Supply with: Two Rubber Lined Black Phenolic Caps

Impeller Assembly Specifications [1969-30025]:

Impeller Assembly consists of impeller magnet & magnet holder

Impeller magnet: PTFE coated magnet, 25.4mm long x 7.62mm OD (approx.)

Magnet Holder: White PTFE, 34.9mm long x 15.9mm OD

Glass Shaft Specifications [1969-70100]:

Material: Type 1 Class A Borosilicate Glass

Dimensions: 7mm OD x 120mm long

Cap Assembly Specifications [1967-90038]:

Cap Assembly consists of screw cap and stopper

Screw Cap: 41mm OD x 37.8mmH with 20.6mm center hole

#4 Stopper: Silicone with 6.4mm center hole
