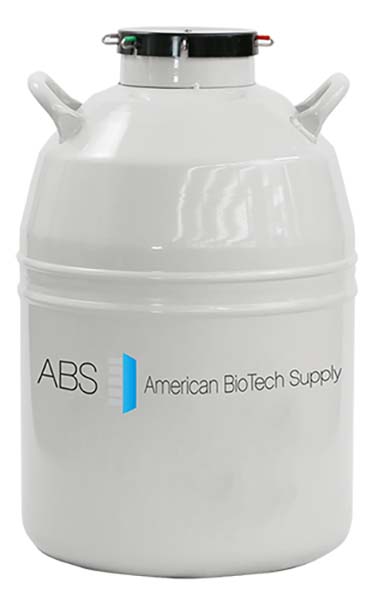

Cryogenic Vapor Shipper VS 6. Vial capacity:840. With (5) 11” Canister

• Optional protective shipping containers ensure upright shipping
• High strength neck tube reduces liquid nitrogen loss
• Lid with locking provision
• Hydrophobic liquid nitrogen absorbent system
• 2 hour charging capability
• One-year warranty on all parts and labour
• One-year vacuum warranty

• Total vial capacity (5/cane) – 840
• Number of canisters – 5
• ½ CC straw (1 level bulk) – 3750
• ½ CC straws (10 cane) – 2500
• LN2 capacity (liters) – 6.2
• Static evaporation rate* (liters/day) – 0.35
• Static holding time (days) – 16
• Neck diameter (mm) – 96.7
• Exterior height (mm) – 559
• Exterior diameter (mm) – 368.3
• Canister height (mm) – 279.4
• Canister diameter (mm) – 81.3

*Static evaporation rate and static holding time are nominal. Actual rate may be affected by the nature of the contents, atmospheric conditions, container history and manufacturing tolerances.

**Static holding time is an arbitrary reference, to estimate container performance under normal operation conditions. Actual working time may vary due to current atmospheric conditions, container history, manufacturing tolerances and any individual patterns of use.
