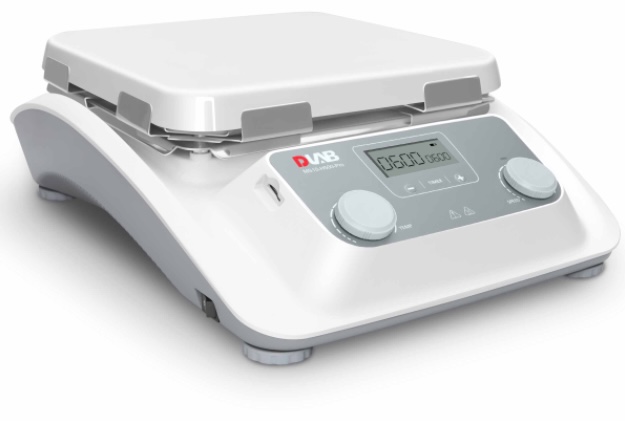

MS10-H500-Pro LCD Digital 10’’ Square Hotplate Magnetic Stirrer. Glass ceramic hotplate; heating temperature up to 500°C. USA plug,100V-120V/50Hz/60Hz

logo

ERP

DLB-8030132117

QUANTITY

Regular Price CA$1,422.00 Special Price CA$1,208.70

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

Features

Large volume: up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
LCD display for precise monitoring of speed and temperature. External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at±0.2°C
Digital speed control of 100 ~ 1500rpm
Max. heating plate temperature 500℃
The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
Data connector : SD card also records instrument's running data in real time
Timing function: running time of instrument can be set

Work plate Dimension [W x D]	254x254mm（10inch）
Work plate material	Glass ceramic
Motor type	Brushless DC motor
Stirring positions	1
Max. stirring quantity, [H2O]	30L
Max. magnetic bar[length]	80mm
Speed range	100-1500rpm resolution±1rpm
Speed,time, Temperature display	LCD
Timer function	1min-99h59min
Heating temperature range	Room Temp.-500℃, increment1℃
Temperature control accuracy	±1℃ (<100℃)±1%(>100℃)
Overheating protection	540℃
Temperature display accuracy	±0.1℃
External temperature sensor	PT1000(±0.2℃)
"Hot" warning	50℃
Data connector	SD card
Protection class	IP21
Power	1400W
Heating output	1350W
Voltage Frequency	100-120/200-240V 50/60Hz
Dimension [WxDxH]	328x424x138mm
Weight	7.18kg
Permissible ambient temperature and humidity	5-40℃，80%RH
