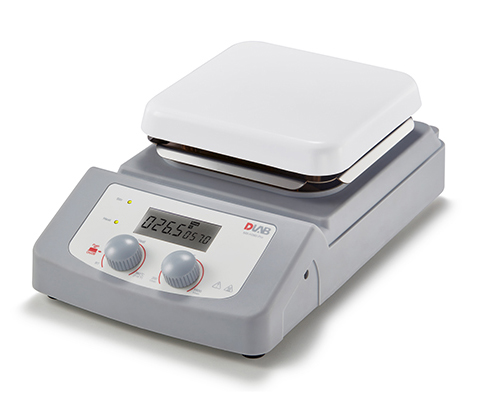

DLAB MS-H380-Pro LCD Digital Hotplate Magnetic Stirrer with ceramic coated plate (140 x 140mm). Speed Range: 200-1,500rpm; Temperature Range: Ambient +5°C to 380°C; Max. Stirring Quantity (H2O): 5L Capacity

ERP
DLB-8030261115
Available
Regular Price CA$459.00 CA$298.35
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

  • Max. heating temperature is 380°C
  • High resolution LCD displays actual temperature and speed
  • Brushless DC motor is maintenance free
  • Aluminum cover with ceramic work plate, allows for immediate heat transfer
  • External temperature control is possible with temperature sensor PT1000
  • Digital temperature control with max. temperature at 380°C
  • Digital speed control with max. speed up to 1500rpm
  • Max. stirring quantity of H2O at 5L

Work plate Dimension

140×140mm

Work plate material

Aluminum cover with ceramic coating

Motor type

Brushless DC motor

Motor rating input

2.4W

Motor rating output

1.8W

Power

510W

Heating output

500W

Voltage

100-120/200-240V 50/60Hz

Stirring positions

1

Max. stirring quantity[H2O]

5L

Max. magnetic bar[length]

50mm

Speed range

200-1500rpm

Speed display

LCD

Temperature display

LCD

Heating temperature range

Room temp. +5°C - 380°C

Over heat Protection

420°C

Temperature display accuracy

±0.1°C

External temperature sensor

PT1000 (accuracy ±0.5°C)

Control accuracy of sensor

±20rpm

Protection class

IP21

Dimension [W x D x H]

320×180×108mm

Weight

2.2kg

Permissible ambient temperature and humidity

5-40°C 80%RH
