Accelerate your growth – CellXpert^® CS220 CO2 incubator shaker

Accelerate your growth – CellXpert® CS220 CO2 incubator shaker

Accelerate your growth – CellXpert^® CS220 CO2 incubator shaker

ERP

EPP-6740112030

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

Do you want to accelerate your research while minimizing the risk of costly delays for your mammalian suspension cultures? Discover the only CO_² incubator shaker in the market with an integrated 180°C sterilization and an outstanding capacity-to-footprint ratio. Learn more about the cost- and time-saving features that will help your team remain focused on the tasks critical to your success.

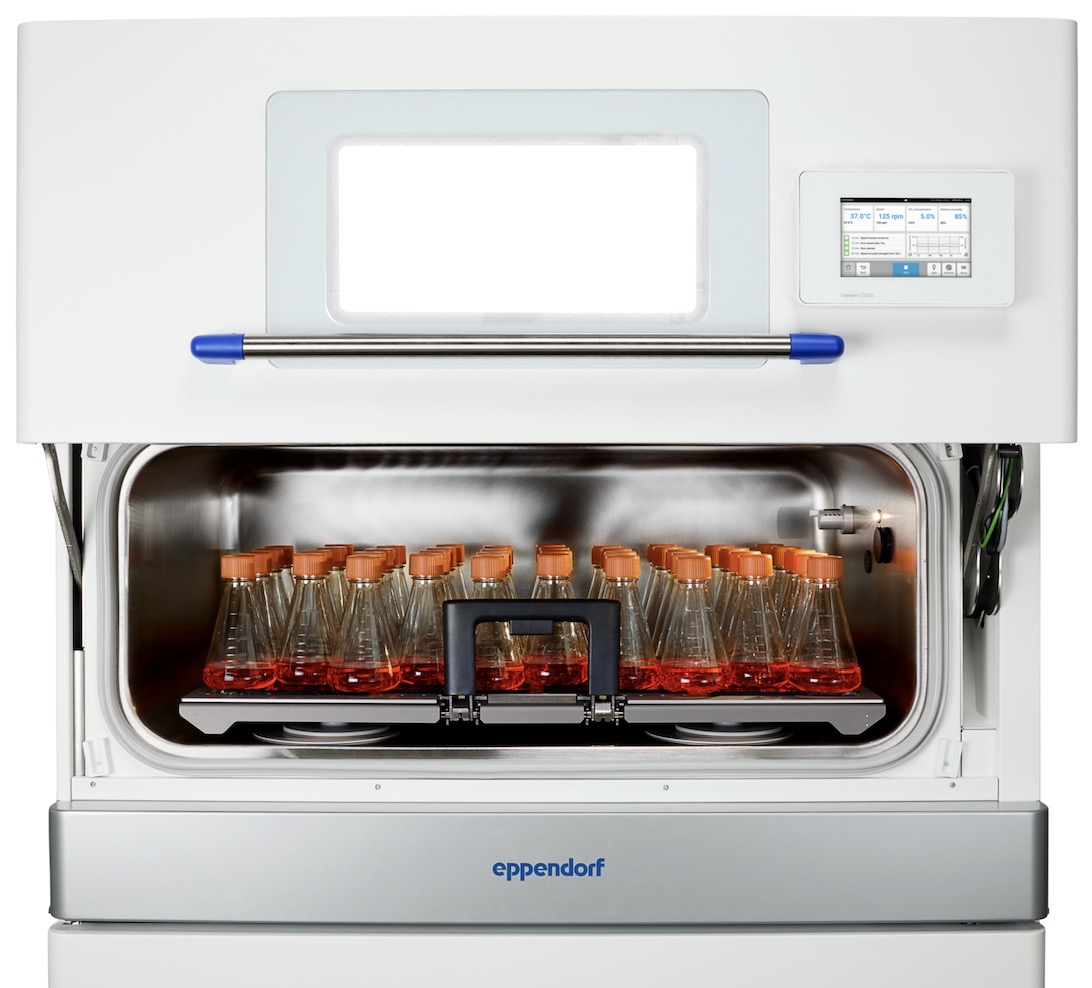

The CellXpert CS220 is a large capacity, stackable CO₂ incubator shaker that was designed to accelerate mammalian suspension culture research projects. It also minimizes the risk of costly project delays by being the first CO₂ incubator shaker in the market that brings the high contamination prevention standards of CO₂ incubator-based cell culture to the shaker world. Discover many cost- and time-saving features below that will help your team to focus on other success-critical tasks.

Up to 40 % higher flask capacity: e.g., 8 x 5 L Corning^®/Thomson Optimum Growth^®, 25 x 1 L / 42 x 500 mL / 102 x 125 mL Erlenmeyer flasks (on sticky pad)
180°C sterilization routine integrated: incl. wizard and downloadable performance protocol; no locally restricted UV-airflow/surface-disinfection
Stainless steel chamber: Hygienic design according to EN ISO 14159:2008 standard plus only few internal parts and no drive wheel, crevices, cover sheets, cables, or heating fins inside
Optimized throughput per lab space: Highest platform size vs. footprint ratio in the market, stackable up to 3-fold
Save costs: Always included: slide-out platform, rH-control, touch interface, access port, sterilization routine; no UV-lamps that require frequent exchange; low gas and energy consumption
Eppendorf X-drive: Proven and tested shaker drive with four weight-supporting shafts for 24/7 vibration-free shaking
Glide-up door and slide-out platform: Saves space and ensures fast and easy experiment setup, cleaning and service – even at the back of the chamber
Full control and fast root-cause analysis: 7” touchscreen shows all setpoints and current parameters at a glance; direct visual overview of logged data/events incl. door openings and alarms, user management
Accessories & options: Storage base and feet, various service options incl. IQ/OQ-GxP-service, VisioNize^® Lab Suite remove monitoring and more

Specifications	CellXpert^® CS220 – 2.5 cm/1 in orbit	CellXpert^® CS220 – 5.1 cm/2 in orbit
Capacity	224 L (7.9 ft³)	224 L (7.9 ft³)
Power supply	100 – 127 V ±10 %, 50 – 60 Hz	100 – 120/208 – 240 V ±10 %, 50 – 60 Hz
Dimensions (W × D × H)	131.8 × 80.5 × 66.1 cm / 51.9 × 31.7 × 26.5 in	131.8 × 80.5 × 66.1 cm / 51.9 × 31.7 × 26.5 in
Product weight	240 kg / 529 lb	240 kg / 529 lb
High temperature disinfection (HTD)	180°C	180°C
Sealed inner glass doors	no	no
Segmented door options	–	–
Temperature control increment	0.1°C	0.1°C
Temperature stability at 37 °C	(à une température ambiante de 22 °C) ±0,1 °C	(à une température ambiante de 22°C) ±0,1°C
Temperature range	Ambient +8°C to 60°C	Ambient +8°C to 60°C
Audible and visual alarms	yes	yes
Temperature uniformity	±0.3°C at 37°C	±0.3°C at 37°C
CO2 range	0.1% – 20%	0.1 % – 20%
CO2 control increment	0.1%	0.1%
CO2 stability at 5 % CO2	±0.1%	±0.1%
Drive mechanism	Eppendorf X-Drive	Eppendorf X-Drive
CO2 uniformity	±0.1%	±0.1%
Number of shelves (standard/max)	–	–
Data export interface	USB, Ethernet, VisioNize^®	USB, Ethernet, VisioNize^®
Benchtop (B), Under Bench (U), Floor (F) or Stackable (S)	F, S (×3)	F, S (×3)
Access port	1	1
On-board data logging	yes	yes
BMS relay	yes	yes
Platform size (cm/in)	51.4 × 93 cm (20.2 × 36.6 in)	51.4 × 93 cm (20.2 × 36.6 in)
Refrigerated	no	no
Slide-out platform	yes	yes
Door opening	glide up	glide up
Speed range	20 – 300 rpm with 2.54 cm (1 in) orbit, 20 – 250 rpm with 5.1 cm (2 in) orbit	20 – 300 rpm with 2.54 cm (1 in) orbit, 20 – 250 rpm with 5.1 cm (2 in) orbit
Capacity	extra large	extra large
CO2 accuracy	±0.3% at 5% CO₂	±0.3% at 5% CO₂
CO2 sensor type	NDIR	NDIR
Relative humidity range	Up to 85%	Up to 85%
Relative humidity sensor type	bidirectional control	bidirectional control
Relative humidity accuracy	±5%	±5%
Relative humidity sensor type	Capacitive sensor	Capacitive sensor
Relative humidity control increment	1%	1%
Relative humidity stability	±2%	±2%
Remote Device Monitoring and Notifications (VisioNize®)	VisioNize^® touch enabled	VisioNize^® touch enabled
Temperature range	8°C above ambient to 60°C	8°C above ambient to 60°C
Temperature accuracy	±0.4°C at 37°C	±0.4°C at 37°C

Agitation
Orbit	2.5 cm (1 in)	5.1 cm (2 in)
Speed	20 – 300 rpm	20 – 250 rpm
Control increments	1 rpm	1 rpm
Control accuracy	±1 rpm	±1 rpm
