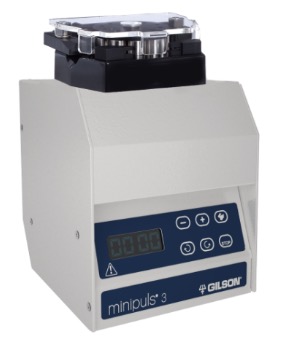

Gilson Minipuls 3 Peristaltic Pump comes with R-1 single channel pump head , 0.3 μL/min to 40 mL/min (1.8L/h, 4mm tubing).

logo

ERP
GA-F155004
Regular Price CA$6,480.00 Special Price CA$4,536.00
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

The compact MINIPULS® 3 is a high-performance, low-pulse, peristaltic pump with interchangeable pump heads for delivering a diverse variety of liquids - from biological to chemical - without altering the critical components within the liquid. Six different channel and flow rate configurations are available.

Pulse-free Liquid Transfer

Utilizing positive displacement pump technology, liquid flows nearly pulse-free as a result of as many as ten stainless steel rollers. The MINIPULS 3 produces smoother flows with excellent accuracy and precision, even at high flow rates. Its adjustable speed stepper motor and high-quality precision bore tubing assure reproducible flow rates.

Flow Rates to Meet Your Needs

With a choice of six quickly interchangeable pump heads, you’ll have a wide range of flow rates to use for your applications.

  • Four standard models (1, 2, 4, or 8 channels): 0.3 μL/min to 30 mL/min
  • Two high flow models (2 or 4 channels): 1 mL/min to 220 mL/min

Easy to Operate

MINIPULS 3 is easy to install, simple to operate, and easy to maintain. With an uncomplicated keypad control and easy-to-read LCD screen, access functions for start/stop, flow direction, increase/decrease flow rate, and prime. Remote control is also possible.

Voltage 90V to 132V for 110 voltage selection: 180V to 264V for 220 voltage selection
Weight 4 kg
Communication Gilson Serial Input/Output Channel (GSIOC) - RS-422A interface
Connections Contact closure: Two TTL-compatible inputs for control of start/stop and direction of flow,Voltage input: One 5V analog signal for variable control of motor speed
Dimensions 15 x 18 x 17.5 cm
Number of Channels 1
Environment 0-40° C No warm-up time required
High Flow No
