Perform rapid separation of DNA fragments

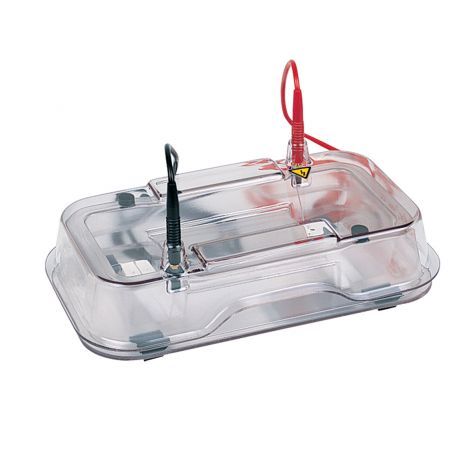

The HE33 Mini Horizontal Agarose Unit is designed for very fast separations of DNA restriction fragments in agarose gels. To achieve passive cooling, you simply fill the clear molded base with 50% ethylene glycol coolant solution, seal it, and place it in a freezer or ice bath until ready to use.
Features and Benefits:
Fast separations—run a 7 x 10 cm gel in as little as 5 minutes
UV transparent running tray—allows the user to image the gel without risk of damage due to handling
Variety of comb sizes—enables customization of sample throughput to fit your laboratories requirements
Adjustable comb height—complete control over well depth
Complete Unit Includes:
Buffer Chamber; Safety Lid with High Voltage Leads; Running Tray; Casting Tray; 8-well comb, 2 pcs; Comb Back, 2 pcs;
Basic Unit Includes:
The same as complete unit without the comb and comb back.
Specifications:
Gel Dimensions (W x L): 7 x 10 cm
Maximum Buffer Volume: 250 ml
Maximum Power Settings: 500 V for (5 min or less), 500 mA, 15 W
Maximum Sample Capacity: 32
Unit Dimensions (L x H x W): 24 x 7 x 13 cm
