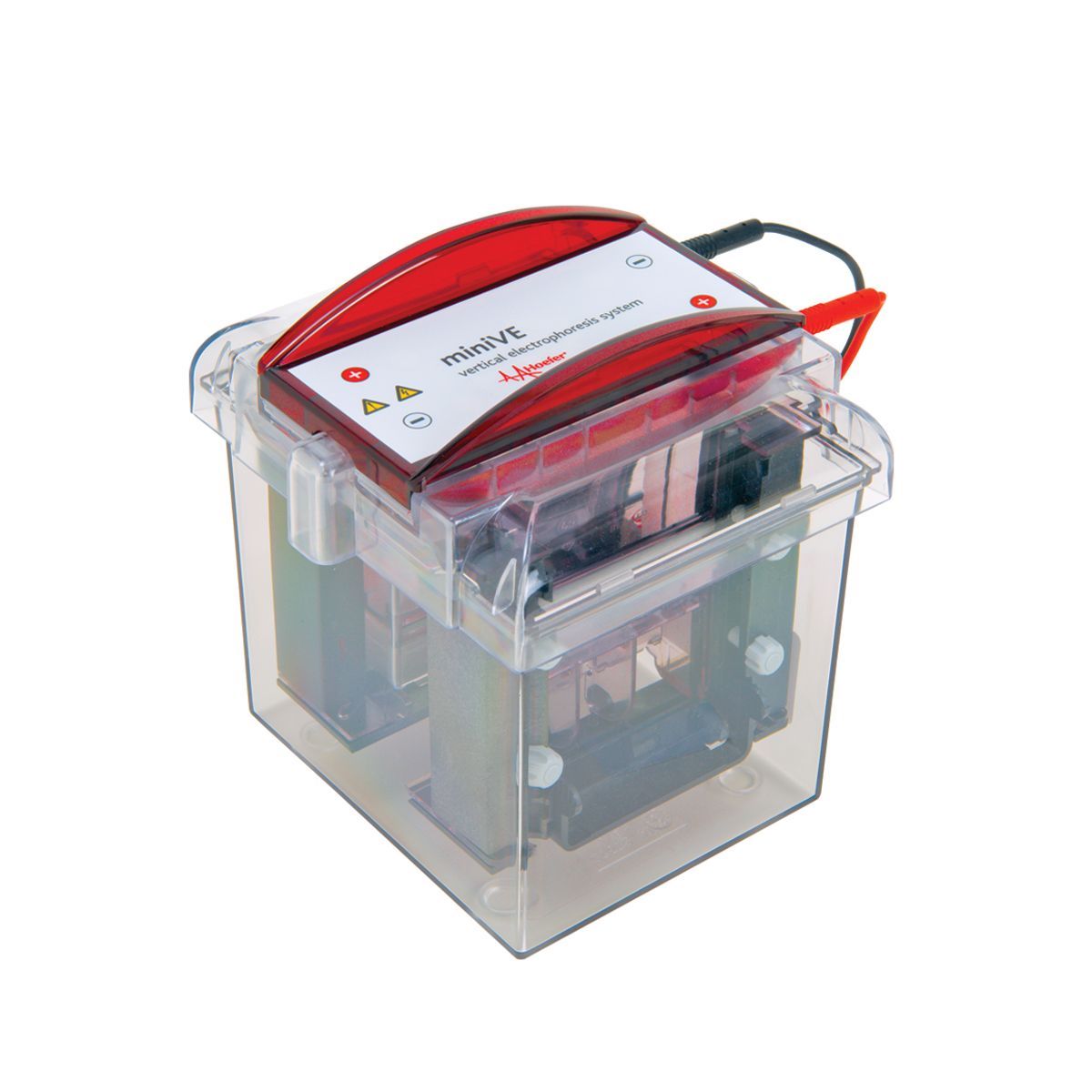

MINIVE INTGRTD VERTICAL BASIC. Mini Vertical Electrophoresis Units, (miniVE, SE260/SE250)

Perform both electrophoresis and electro transfer in one sturdy, compact unit

Features:

Quick, excellent results using minimal buffer

Passive cooling produces gels with straight lanes and sharp bands

Cast your own or use precast gels from a variety of manufacturers

Transfer up to 4 gels in 45 minutes with only 300 ml buffer using optional SE302 Blot Modules

Designed for use with a wide variety of precast gels

Complete Unit Includes:

Buffer Chamber; Gel Modules with Gaskets, 2 assemblies; Safety Lid with High Voltage Leads; Glass Plates, Rectangular, 10 x 10.5 cm, 3 pcs; Glass Plates, Notched, 10 x 10.5 cm, 3 pcs; Combs, 10-well, 1.0 mm thick, 2 pcs; T-Spacers, 1.0 mm thick, 4 pcs;

Basic Unit Includes:

The same as complete unit without the combs, spacers, and glass plates.

Specifications:

Glass Plate Size (W x H) 10 x 10.5 cm or 10 x 8 cm

Spacers 0.75 mm, 1.0 mm, 1.5 mm

Maximum Power Settings 1000 V, 500 mA, 50 W

Unit Dimensions (W x H x D) 32 x 37 x 14 cm
