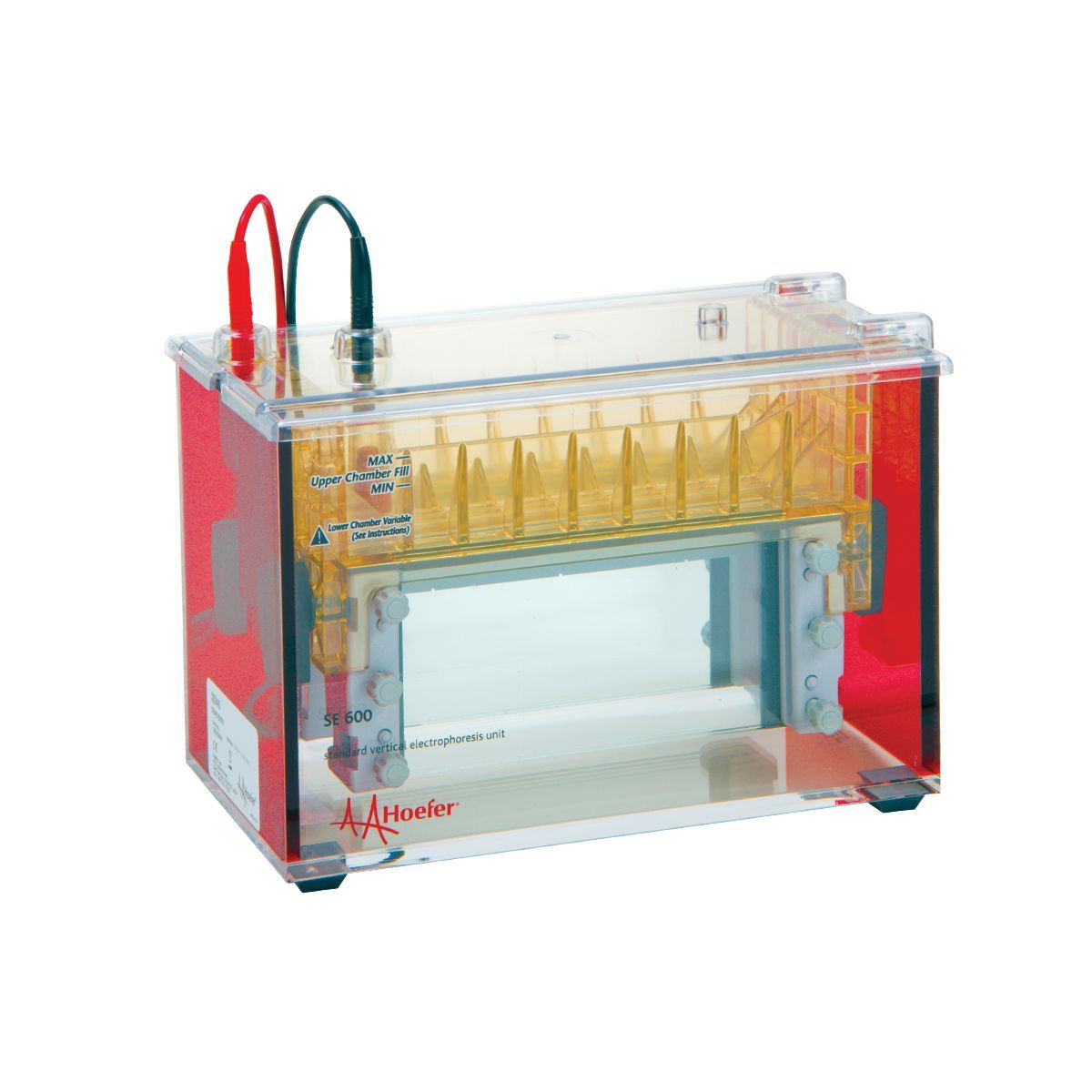

Extra wide format ideal for quick high-throughput runs
Features:
Maximum glass plate size 18 x 8 cm
Permits rapid screening of up to 112 samples at one time
Design permits gels to be surrounded uniformly by buffer so heat dissipation is efficient.
Bands are sharp and lanes are straight
Accommodates denaturing or native polyacrylamide gels
Run up to four second dimension gels using IEF strips or tube gels
Complete Unit Includes:
Buffer Chamber; Safety Lid with High Voltage Leads; Glass Plates 18 x 8 cm, 6 pcs; Combs, 15-well, 1.5 mm thick, 2 pcs; Spacers, 1.5 mm Thick, 2 cm wide, 4 pcs; Dual Gel Caster
Basic Unit Includes:
The same as complete unit(SE640-15-1.5) without the combs and spacers.
Specifications:
Glass Plate Size (W x H) 18 x 8 cm
Spacers 0.75 mm, 1.0 mm, 1.5 mm
Maximum Power Settings 1000 V, 500 mA, and 50 W
Maximum Temperature 45°C
Indoor Use 4 to 40°C
Humidity Up to 80%
Unit Dimensions (W x H x D) 32 x 29 x 14 cm
