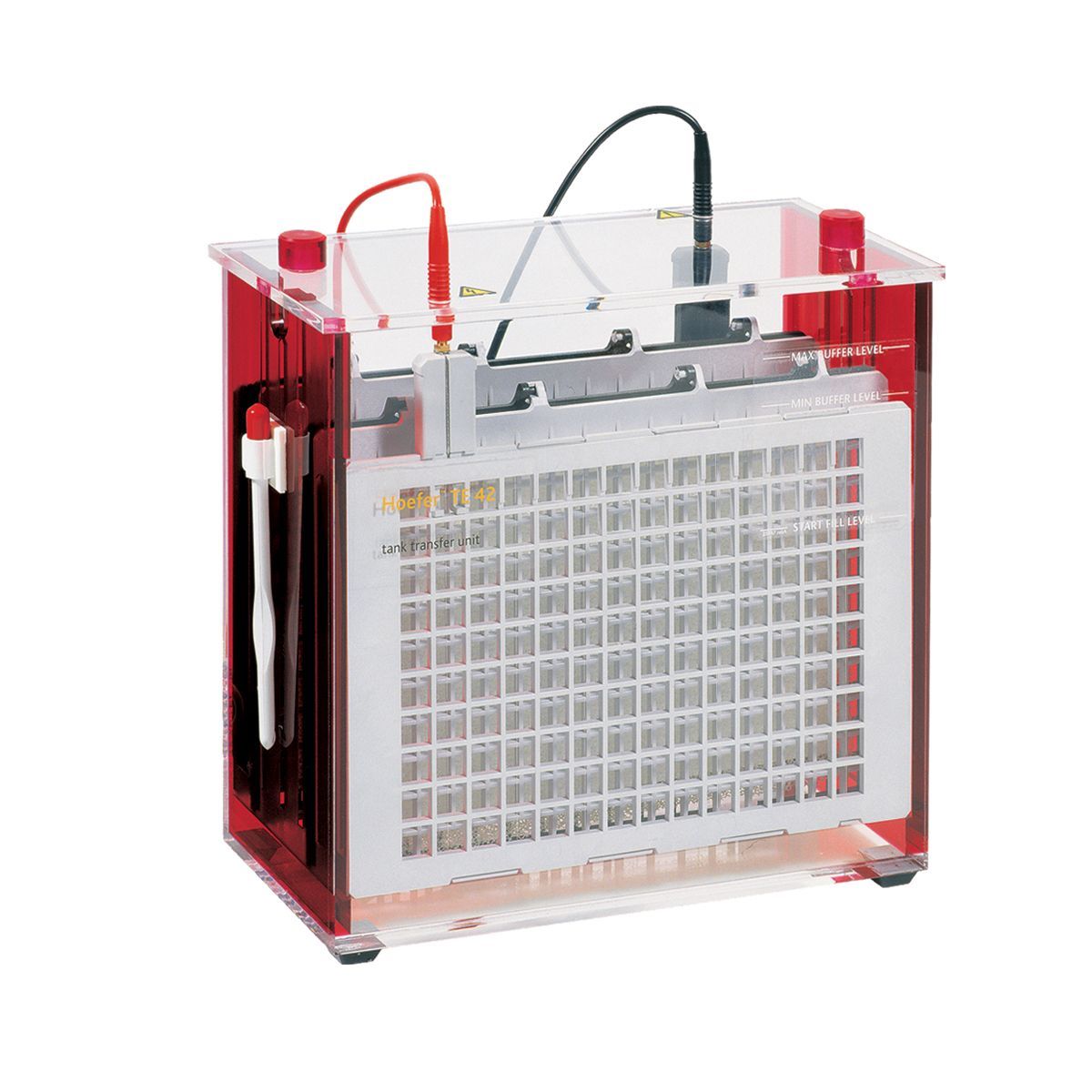

Quickly and evenly transfers proteins and nucleic acids from polyacrylamide or agarose gels onto nylon, nitrocellulose, or PVDF membranes
Features & Benefits:
Uniform and strong electric field—supports efficient and even transfers
Color-coded, easy to assemble cassettes—ensures proper orientation during transfer
Superior tank design allows the cassettes to apply equal pressure across the stack—prevents gel distortion
Optional TE47 heat exchanger—provides excellent buffer temperature control when used with an external cooling water bath
Includes:
Lower Chamber; Safety Lid with High Voltage Leads; Electrode Panels, 2 pcs; Cassettes, 2 pcs; Foam Sponges, 6 mm thick, 2 pcs; Foam Sponges, 3 mm thick, 4 pcs; Cassette Hook; Blotter Paper (14.5 x 21.5 cm), 25 sheets
Specifications:
Capacity: Up to four 15 x 21 cm gels (without cooling), Up to two 15 x 21 cm gels (with cooling)
Maximum Power Settings 100 V, 2 A, 200 W
Unit Dimensions (W x H x D) 8 x 13 x 30.5 cm
