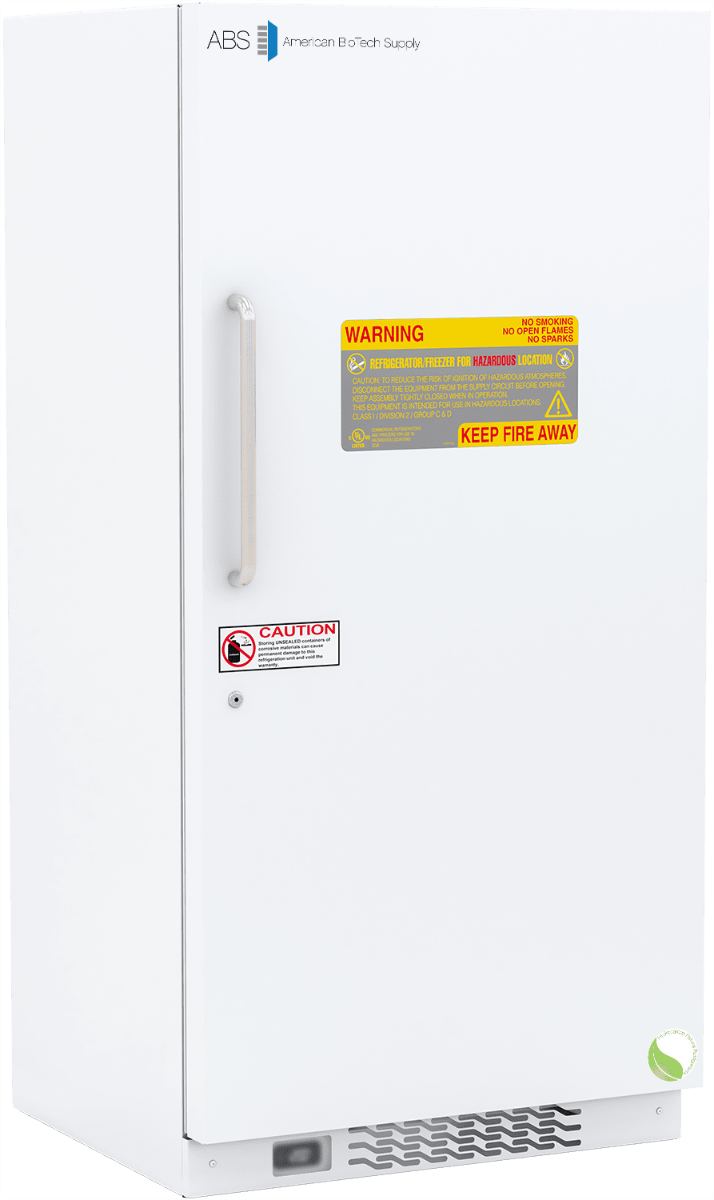

30 Cu. Ft. Standard Hazardous Location Refrigerator/Freezer Combination Unit. Manual defrost. Freezer Temp range: -15°C to -20°C; Refrigerator temp range: 0°C to 8°C. Not equipped with plug; must be hardwired in conduit. For use in environments where vola

logo

ERP
NOR-ABT-HC-ERCS-30
CA$19,341.00
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

This hazardous location refrigerator/freezer combo unit meets NFPA and OSHA guidelines for the safe storage of volatile materials in potentially hazardous work environments.

This model is the ideal choice for industrial environments requiring strict safety protocols. It delivers 30 cubic feet of spacious storage and utilizes EPA SNAP compliant natural refrigerants for environmentally responsible operation. Powered by microprocessor temperature technology, this model delivers precise and stable temperature control.

Please note that this unit must be hardwired for safety. With low energy consumption and high safety standards, this model is a safe and efficient solution for hazardous laboratory locations and industrial settings.

Storage capacity (cu. ft) 30 Cu. Ft. (25 Cu. Ft. Refrigerator/5 Cu. Ft. Freezer
Door One (1) solid swing, right hinged; stainless steel door handle; magnetic door gasket
Interior One (1) inner door (Freezer)
Shelves Three (3) adjustable wire shelves (Refrigerator)
Mounting and Installation Levelling legs
External probe access Two (2) 3/4″ probe access port on rear wall
Insulation EPA compliant high density urethane foam
Exterior materials Powder coated steel
Access control Keyed door lock
General warranty Two (2) year parts and labour warranty
Compressor warranty Five (5) year compressor warranty
Product Weight (lbs) 353
Shipping Weight (lbs) 383
Rated Amperage 3 Amps
Power Plug/Power Cord NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard. Meets NFPA and OSHA guidelines for hazardous locations, Class 1 Division II, Groups C&D
