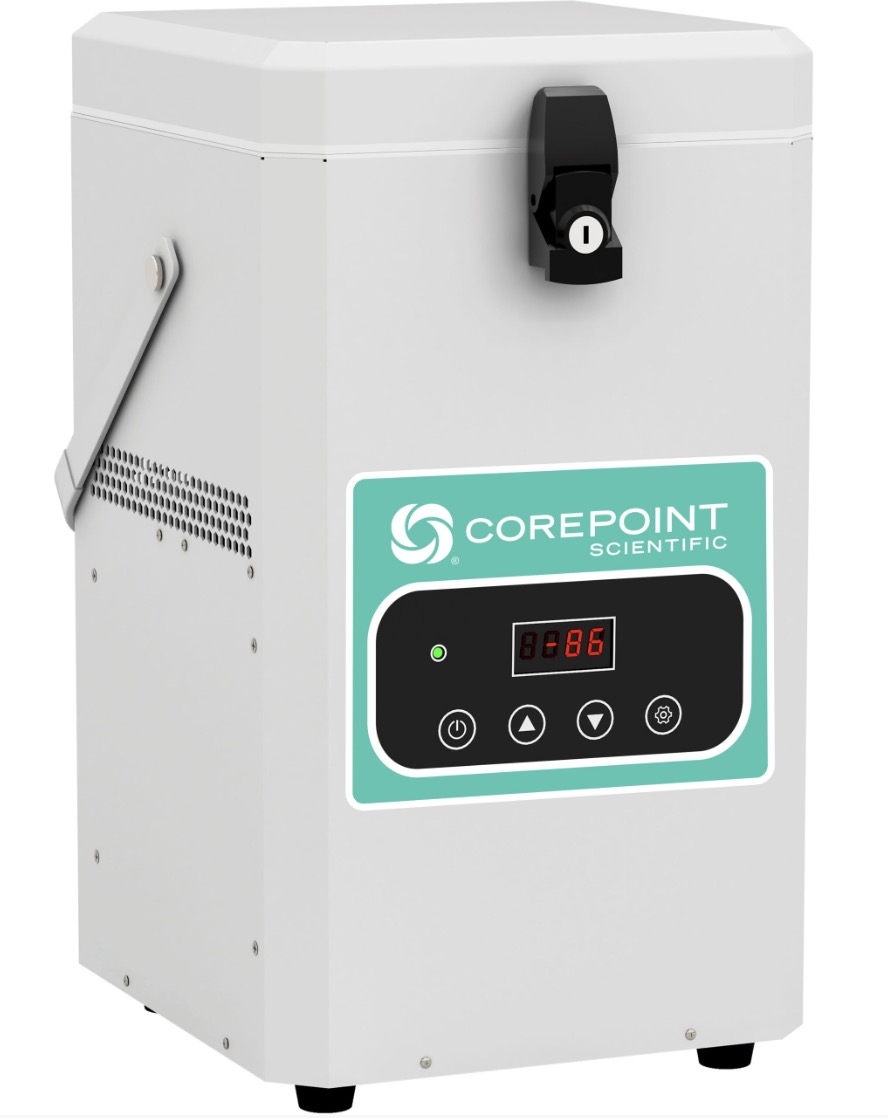

This ULT Freezer Benchtop delivers reliable ultra-low temperature performance in a compact design.
Engineered with Stirling engine technology and helium refrigerant, this unit provides efficient cooling down to -86°C while maintaining low energy consumption and quiet operation. Designed for benchtop convenience, the freezer features a top-access swing door with a compression latch closure and a keyed lock for safety.
This compact ULT is ideal for specialty applications where dependable -86°C storage is required without the footprint of a full-size ULT freezer.
Door
Top access swing door, compression latch closure
Mobility and Levelling
Rubber feet
Insulation
Enclosure is foamed-in-place with EPA compliant high density urethane foam and VIPs
Exterior Material
White powder coated steel
Access Control
Keyed door lock
Warranty
Two (2) years parts and labour warranty
Product Weight (lbs.)
21
Rated Amperage
8
Power Plug/Cord
NEMA 5-15P plug
Electrical Requirement
110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
Controller, Configuration, Alarms and Monitoring
Controller technology
Microprocessor with capacitance touch display
Battery Backup
Adapter included for 12V socket power
Temperature setpoint range
40°C to -86°C
Display probe
Integral RTD probe
External alarm connection
Non-applicable
Alarms
Audible & Visual Alarms when the temperature is above the set point by 10°C for 5 minutes
Dimensions
Exterior Width (in.)
10.25"
Exterior Depth (in.)
11"
Exterior Height (in.)
18.5"
Interior Width (in.)
6"
Interior Depth (in.)
6"
Interior Height (in.)
4"
Disclaimer
The freezer requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
