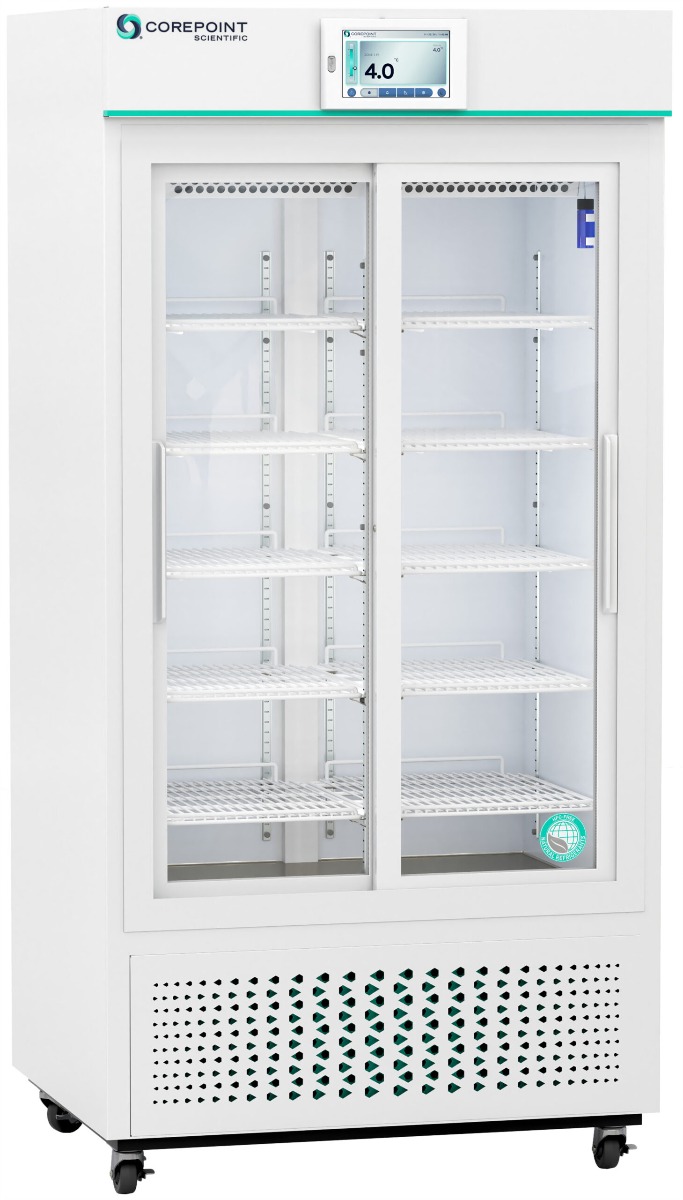

Touchscreen Glass Door Laboratory Refrigerator with Variable Speed Compressor 33 Cu. Ft. 2°C to 15°C. 110 - 120V AC, 15A breaker, NEMA 5-15 receptacle. Three (3) years parts and labor warranty, Seven (7) years compressor warranty.

logo

ERP
NOR-CPS-VS-LP-33-TS
CA$19,493.00
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

These premium touchscreen refrigerators offer precise temperature control and advanced digital monitoring, ideal for clinical and research settings.

They feature variable speed compressor technology for exceptional performance and energy efficiency. Experience an intuitive colour touchscreen controller, offering multi-layered access and data logging capabilities. Protect your samples with forced draft air circulation and customizable alarms with remote contacts.

Enjoy the benefit of natural, hydrocarbon refrigerants for energy savings and a greener laboratory footprint. This refrigerator is constructed with durable powder-coated steel, glass door transparency, a keyed access lock, LED interior lighting, and adjustable interior shelving.

Also included is a comprehensive 3-year parts and labour warranty with a generous 7-year compressor warranty to protect your investment. With these refrigerators, you’ll increase performance and maximize efficiency in your lab.

Cubic Footage

31 to 49 Cu. Ft.

Temperature Setpoint

4°C (39°F)

Door Type

Glass Sliding

Door Count

2

Storage Capacity

33 Cu. Ft.

Door

Two (2) sliding glass doors, self-closing

Shelves

Eight (8) adjustable shelves (adjustable in 1/2" increments)

Mobility and Levelling

Swivel casters - locking front casters

Interior Lighting

LED interior lights are safety shielded and switch controlled

External Probe Access

3/4" probe access port on rear wall

Insulation

Cabinet is foamed-in-place with EPA compliant high-density urethane foam

Exterior Material

White powder coated steel

Access Control

Keyed door lock

Warranty

Three (3) year parts and labor warranty, Seven (7) year compressor warranty

Product Weight (lbs.)

355

Rated Amperage

3

Power Plug/Cord

NEMA 5-15P plug

Electrical Requirement

110 - 120V AC, 15A breaker, NEMA 5-15 receptacle

Compressor

Hermetic, variable speed

Refrigerant

EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)

Air Flow

Forced draft air circulation, patented air flow technology

Defrost

Cycle Defrost

Maximum temperature variation (Cabinet air)

+/- 1.5° C

Stability (Simulator ballast)

+/- 0.3° C

Controller technology

Microprocessor with colour touchscreen (8in) input and display, C°/F° switchable, resolution is 0.1° C/0.2° F

Display

8" touchscreen featuring: Security and Access: Multi-level password protection: User, Supervisor, and Admin roles for access and control. Advanced controls: Customizable passwords/PINs: Ensures tailored access for your team. Calibration adjustments: fine-tune temperature offsets for precise measurements. visual and user interface: intuitive touch screen: pinch-to-zoom, scrollable graphs, and customizable display options. Adjustable display settings: screen brightness, real-time temperature comparison to alarm points. and selectable °C/°F display with 0.1°C/0.2°F resolution.

Battery Backup

High capacity 12V battery for controller temperature and alarm display and logging only, no cooling active

Digital Communication

4-20mA Output

Access

Keyed door lock

Temperature setpoint range

2° C to 15° C

Display probe

Product simulator bottle with glass bead media

External alarm connection

Remote alarm contacts

Alarms

Audible & Visual Alarms: customizable sounds and volumes; silent mode with visual persistence. Alarm delays: Adjustable settings for door, temperature, and power loss alarms to prevent nuisance alerts. Ring-back functionality. Audible alarms re-engage after a preset delay if the condition persists.

Exterior Width (in.)

39.625"

Exterior Depth (in.)

32.5"

Exterior Height (in.)

81.75"

Interior Width (in.)

35"

Interior Depth (in.)

23.75"

Interior Height (in.)

48.75"

Disclaimer

Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
