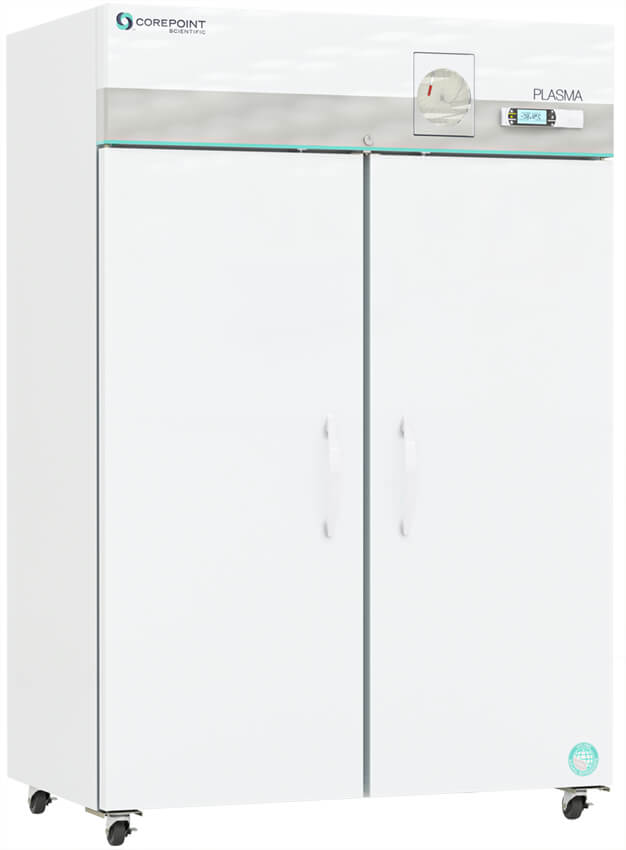

Corepoint Scientific Plasma Freezer with Chart Recorder Double Solid Door 49 Cu. Ft.

• DOUBLE SOLID DOOR PLASMA FREEZER
• INDOOR USE ONLY, +18°C TO +26°C (+65°F TO +78°F), <70% RH
• 49 CU. FT. GROSS VOLUME, UP TO 960 PLASMA BOXES WITH OPTIONAL 8TH DRAWER
• TWO SWING SOLID DOORS, SELF-CLOSING, STAY POSITION AT 100° OPEN, RIGHT AND LEFT HINGED TO OPEN FROM THE MIDDLE, NON-REVERSIBLE, MAGNETIC SEALED GASKET, KEYED LOCK
• 7 DRAWERS STANDARD PER DOOR (14 DRAWERS TOTAL) WITH OPTION FOR 8TH DRAWER PER DOOR (16 DRAWERS TOTAL), 304 SS DRAWERS, 65 LB. CAPACITY EACH
• 4 SWIVEL CASTERS, FRONT CASTERS LOCKING
• SHIELDED, SWITCHED LED LIGHTING, FULL COVERAGE, BALANCED SPECTRUM
• EXTERNAL PROBE ACCESS: REAR WALL PORT (3/4") DIA.
• CABINET IS FOAMED-IN-PLACE WITH EPA COMPLIANT HIGH DENSITY URETHANE FOAM
• EXTERIOR: WHITE POWDER COATED STEEL
• DEFROST: CYCLE OPTIMIZED, AUTOMATIC
• ACCESS CONTROL: KEY LOCK
• REFRIGERANT: EPA SNAP COMPLIANT, R290
• TWO (2) YEARS PARTS AND LABOR WARRANTY, EXCLUDING CALIBRATIONS
• SEVEN (7) YEARS COMPRESSOR WARRANTY

Temperature Controller

• CONTROLLER TECHNOLOGY: PROPORTIONAL INTEGRAL DERIVATIVE (PID) MICROPROCESSOR WITH LCD DISPLAY
• BATTERY BACKUP: 24V HIGH CAPACITY BATTERY, CONTROLLER, ALL ALARMS ACTIVE, TEMPERATURE MONITORING DAQ AND EVENT LOGGING ACTIVE ON BATTERY BACKUP
• DIGITAL COMMUNICATION: RS-485 (MODBUS)
• CHART RECORDER: 6" PAPER, INKLESS
• TEMPERATURE SETPOINT RANGE: -15°C TO -35°C
• DISPLAY PROBE: CALIBRATED, STAINLESS STEEL
• EXTERNAL ALARM CONNECTION: STATE SWITCHING REMOTE ALARM CONTACTS
• ALARMS: VISUAL AND AUDIBLE INDICATORS, POWER FAILURE, TEMPERATURE SENSOR FAILURE, BATTERY VOLTAGE MONITOR AND REPLACEMENT, HIGH / LOW TEMPERATURE, DOOR AJAR
• SIMULATOR BALLAST: UPPER PROBE: 4 OZ. (120 ML) BOTTLE, 50% GLYCEROL MIXTURE. LOWER PROBE: SOLID THERMAL MEDIA

EXTERIOR DIMENSIONS:

• WIDTH: 54”
• DEPTH: 36 3/8”
• HEIGHT: 81 ½”
• PRODUCT WEIGHT: 675 LBS. (14 DRAWERS)
• SHIPPING WEIGHT: 794 LBS. (14 DRAWERS)
• RATED AMPERAGE: 7.6 AMPS
