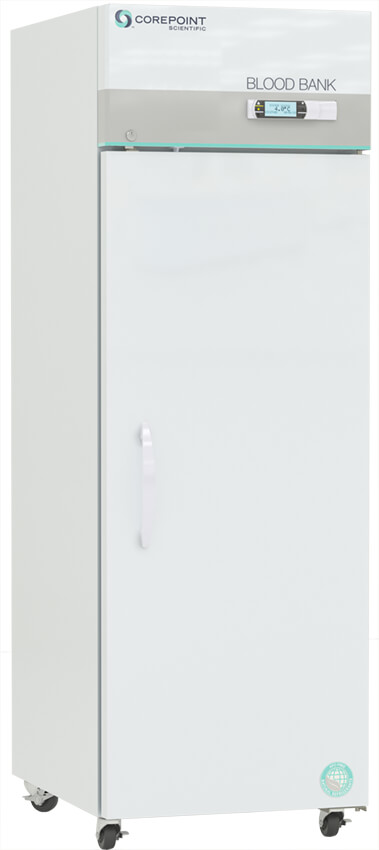

Corepoint Scientific Blood Bank Refrigerator Single Solid Door 23 Cu. Ft.

• SINGLE SOLID DOOR BLOOD BANK REFRIGERATOR
• INDOOR USE ONLY, +18°C TO +26°C (+65°F TO +78°F), <70% RH
• 23 CU. FT. GROSS VOLUME, UP TO 416 BLOOD BAGS WITH OPTIONAL 8TH DRAWER
• ONE SWING SOLID DOOR, SELF-CLOSING, STAY POSITION AT 100° OPEN, RIGHT HINGED, NON REVERSIBLE, MAGNETIC SEALED GASKET, KEYED LOCK
• 7 DRAWERS STANDARD WITH OPTION FOR 8TH , 304 SS DRAWERS, 65 LB. CAPACITY EACH
• 4 SWIVEL CASTERS, FRONT CASTERS LOCKING
• SHIELDED, SWITCHED LED LIGHTING, FULL COVERAGE, BALANCED SPECTRUM
• PROBE ACCESS: REAR WALL PORT (3/4") DIA.
• CABINET IS FOAMED-IN-PLACE WITH EPA COMPLIANT HIGH DENSITY URETHANE FOAM
• EXTERIOR MATERIALS: WHITE POWDER COATED STEEL
• ACCESS CONTROL: KEY LOCK
• EPA SNAP COMPLIANT REFRIGERANT, R600A
• TWO (2) YEARS PARTS AND LABOR WARRANTY, EXCLUDING CALIBRATIONS
• SEVEN (7) YEARS COMPRESSOR WARRANTY
• HOSPITAL GRADE POWER PLUG, NEMA 5-15, 9 FT NOMINAL (2.7 M)
• DEFROST: CYCLE OPTIMIZED, ZERO ENERGY
• AGENCY LISTING: FDA LISTED CLASS II MEDICAL DEVICE, 21CFR PART 820 COMPLIANT, ETL, CETL LISTED (CERTIFIED TO UL471 STANDARD, HYDROCARBON REFRIGERANT SAFETY)

Temperature Controller

• CONTROLLER TECHNOLOGY: PROPORTIONAL INTEGRAL DERIVATIVE (PID) MICROPROCESSOR WITH LCD DISPLAY
• BATTERY BACKUP: 24V HIGH CAPACITY BATTERY, CONTROLLER, ALL ALARMS ACTIVE, TEMPERATURE MONITORING DAQ AND EVENT LOGGING ACTIVE ON BATTERY BACKUP
• DIGITAL COMMUNICATION: RS-485 (MODBUS)
• TEMPERATURE SETPOINT RANGE: 1°C TO 10°C
• DISPLAY PROBE: CALIBRATED, STAINLESS STEEL
• EXTERNAL ALARM CONNECTION: STATE SWITCHING REMOTE ALARM CONTACTS
• ALARMS: VISUAL AND AUDIBLE INDICATORS, POWER FAILURE, TEMPERATURE SENSOR FAILURE, BATTERY VOLTAGE MONITOR AND REPLACEMENT, HIGH / LOW TEMPERATURE, DOOR AJAR
• SIMULATOR BALLAST: UPPER PROBE: 4 OZ. (120 ML) BOTTLE, 50% GLYCEROL MIXTURE. LOWER PROBE: SOLID THERMAL MEDIA

EXTERIOR DIMENSIONS:

• WIDTH: 26 7/8"
• DEPTH: 36 3/8"
• HEIGHT: 81 1/2"
• DOOR SWING: 24 7/8"
• RATED AMPERAGE: 3 AMPS
• PRODUCT WEIGHT: 338 LBS. (7 DRAWERS)
• SHIPPING WEIGHT: 397 LBS. (7 DRAWERS)
