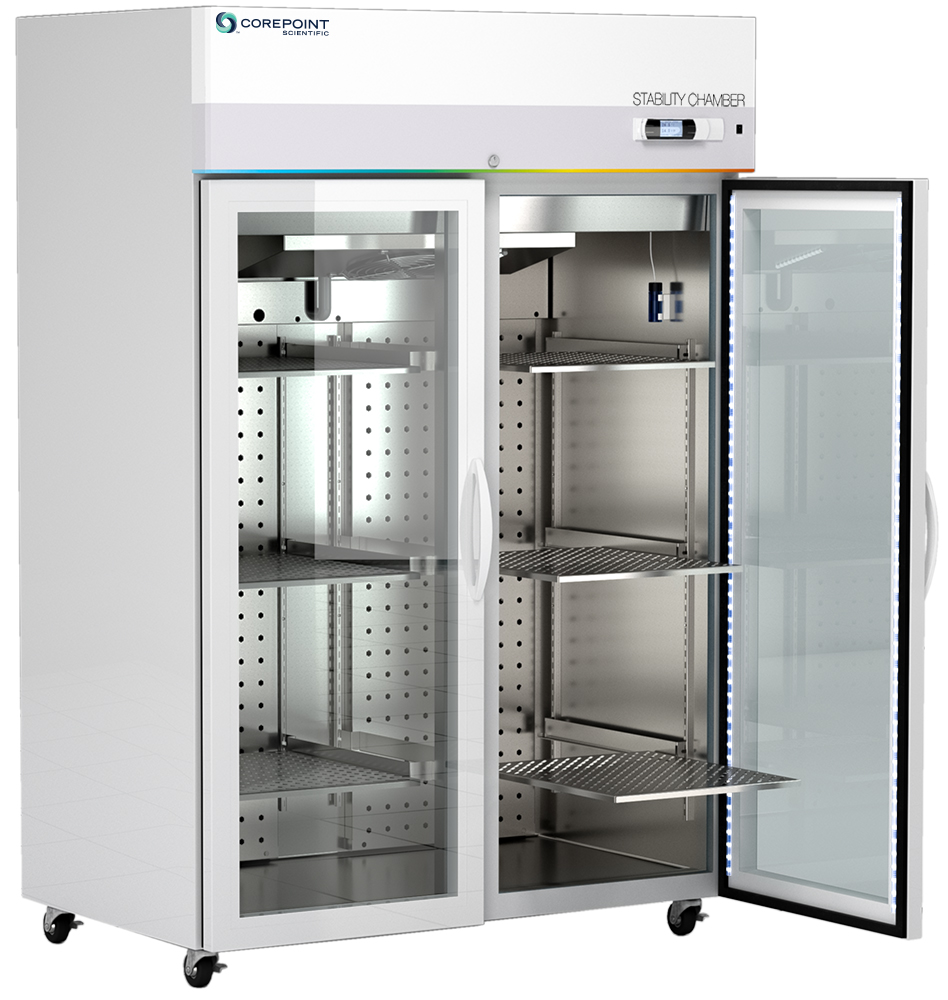

Corepoint Scientific Temperature and Humidity Stability Chamber Double Glass Door 49 Cu. Ft. Temp range: 4° to 70°C; Humidity set point range: 10% to 95% RH. 18 month parts and labour warranty; 5 year compressor parts warranty.

• Temperature setpoint range: 4°C to 70°C
• Temperature control: +/- 0.1°C
• Temperature stability: +/- 0.5°C from 4°C to 70°C (range dependent per test protocol)
• Temperature uniformity: +/- 1°C from 4°C to 70°C (range dependent per test protocol)
• Humidity set point range: 15 to 95% RH
• Humidity control: +/- 0.1%RH
• Humidity stability: +/- 3% RH (range dependent per test protocol)
• Cabinet is foamed-in-place with EPA compliant high density polyurethane foam insulation
• White-powder coated steel exterior
• Stainless steel interior
• Plenum air distribution
• Floor drain
• Top mounted, variable speed compressor
• Hydrocarbon natural refrigerant (R290)
• Ultrasonic humidification
• Multi-element, independent proportional electric heating
• Temp sensor type: NTC
• RH sensor type: capacitive
• Condensate evaporation
• Shielded, switched interior LED lighting
• Heavy duty door handles
• Magnetic door gaskets for positive seal

• Exterior dimensions: 54" W x 35 3/4" D x 80 3/4" H with casters;
• 77 1/4" H without casters
• Interior dimensions: 49 1/8" W x 25 1/2" D x 59" H
• 115V, 60 Hz, 12.4 amps, 1/3 HP
• ETL listed
• Shipping weight: 594 lbs.

Proportional integral derivative (PID) controller with LCD display

• Programmable ramp and soak
• Process phase graphic animations
• USB data port
• RS-485 communication (Modbus-TRU)
• Real time clock
• Battery backup
• Event logs: 100
• Visual alarm indicator
• Audible alarm indicator
• Process phase specific temp alarm
• Process phase specific humidity alarm
• Power failure alarm
• Sensor failure alarm
