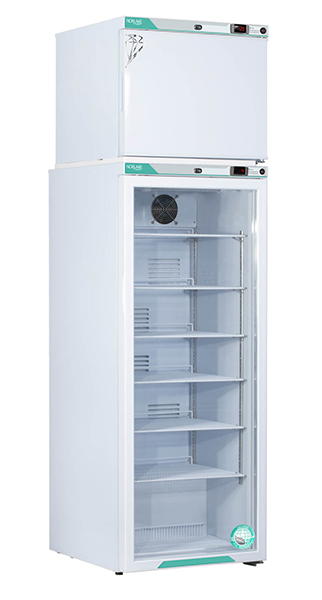

Corepoint Scientific White Diamond Series Refrigerator & CONTROLLED Auto Defrost Freezer Combination, 12 Cu. Ft. (10.5 Ref./1.0 Freezer), Glass Door Ref., Solid Door Freezer
![]()
The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.
Free Technical Support
In-depth and personal over-the-phone support at no cost.
Quality Parts & Accessories
Mandel uses manufacturer-specified parts for all repairs and maintenance.
Details
Nor-lake Scientific's proprietary “Controlled Auto Defrost” technology provides the convenience of an auto-defrost design while still ensuring that vaccines remain at consistent and stable temperatures below 5°F (-15°C)
**NOTE: Freestanding Models require 4” of clearance around the back and sides of the unit for proper ventilation.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Features
- Two exterior swing doors: right hinged, not reversible; glass door (refrigerator), solid door (freezer)
- Freestanding thermometer with 3 year certificate of calibration, with min/max memory, °F/°C switchableaudible and visual high and low temperature alarms (refrigerator and freezer)
- Remote alarm contacts (refrigerator and freezer)
- Six adjustable shelves with guard rail on back to prevent product from being pushed against back wall (refrigerator)
- Two adjustable shelves with guard rail on back to prevent product from being pushed against back wall (freezer)
- Bottom footed shelf to allow air circulation (refrigerator and freezer)
- Vaccine storage power cord warning label
- Forced draft circulation (refrigerator)
- Keyed door locks
- Magnetic door gasket for positive seal
- Integrated door handles
- Levelling legs
- Stacking kit
- LED interior light (refrigerator)
- Two probe access ports (3/8"); one, refrigerator/one, freezer
- White powder coated exterior
- HFC-free refrigerant (R600A), foam insulation and packaging pharmacy refrigerator/freezer toolkit and temperature logs
- Pyxis®, Omnicell ®and Acudose RX® compatible
- Three year parts and labour warranty, plus an additional two year compressor parts warranty
Specifications
- Exterior dimensions:
- Width: 23 ¾”
- Depth: 26 ½”
- Height: 80 ¼"
- Controlled auto defrost (freezer), cycle defrost (refrigerator)
- Power:
- Refrigerator: 115v, 60 Hz, 2.3 amps, 1/3 hp
- Freezer: 1 amp 1/8 hp
- UL/C-UL listed
- Shipping weight: 289 lbs.
Note: this unit requires 2 outlets.
