Model: MB23, Capacity: 110g, Repeatability (Std Dev) (g): 0.3% (3g sample), 0.2% (10g sample), Readability: 0.1% / 0.019, Sample Size: 3g to 20g typical, 0.5 min., Interface: Bidirectional RS-232, Timer: 1 - 99 minutes, 30-second increments to 60 minutes,

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.
Free Technical Support
In-depth and personal over-the-phone support at no cost.
Quality Parts & Accessories
Mandel uses manufacturer-specified parts for all repairs and maintenance.
Details

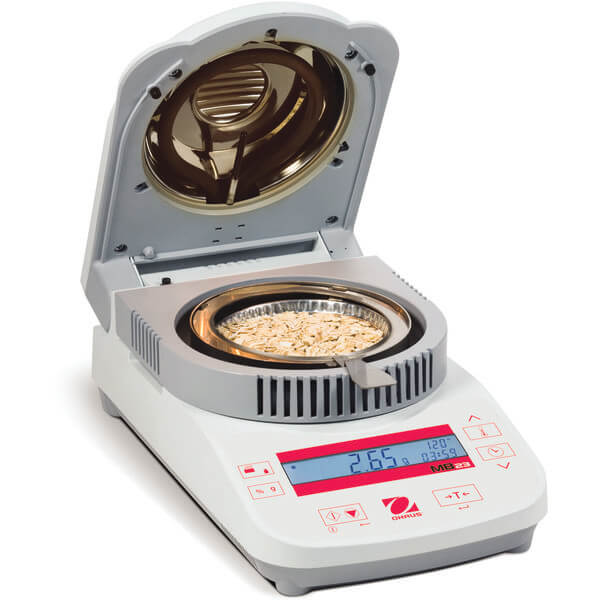

The MB23 utilizes a metallic sheathed - no glass infrared heating element for drying of samples. With a bright backlit LCD and easy one-button setup and menu navigation, MB23 is extremely user-friendly.
MB23 is very easy-to-clean to ensure the integrity of your samples and its compact design allows it to fit seamlessly into most workspaces.
Features
Applications
Percent Moisture Determination, Percent Solid Determination, Weighing
Display
Backlit liquid crystal display (LCD)
Operation
Power cord (included)
Communication
RS232 (included)
Construction
Infrared heat source, ABS housing, metal pan support, metal pan handler, in-use cover
Design Features
3 shut off criteria (manual, timed or auto), 1 standard heating profile, 50°C to 160°C heating range (5°C increments)
Specifications
| Capacity | 110g |
| Repeatability (Std Dev) (g) | 0.3% (3g sample) 0.2% (10g sample) |
| Readability | 0.1% / 0.01g |
| Sample Size | 3g to 20g typical, 0.5g min. |
| Interface | Bidirectional RS-232 |
| Timer | 1 - 99 minutes, 30-second increments to 60 minutes |
| Heating Technology | Infrared (no glass) |
| Temperature Range | 50°C to 160°C in 5° increments |
| Power | 100 to 240 VAC, 50/60 Hz |
| Tare Range | To capacity by subtraction |
| Operating Temperature Range | 5° to 40°C |
| Display Type | Custom backlit LCD |
| Displays | % moisture or % solids or weight (g), temperature, time |
| Pan Size (Diameter) | 90 mm |
| Dimensions (W x H x D) | 17 x 13 x 28 cm |
| Net Weight | 2.3 kg |
| Included Accessories | |
| Sample Pans (Quantity 50) | Standard |
| In Use Cover | Standard |
| Sample Pan Handler | Optional (PN 11113873) |
-
