Details

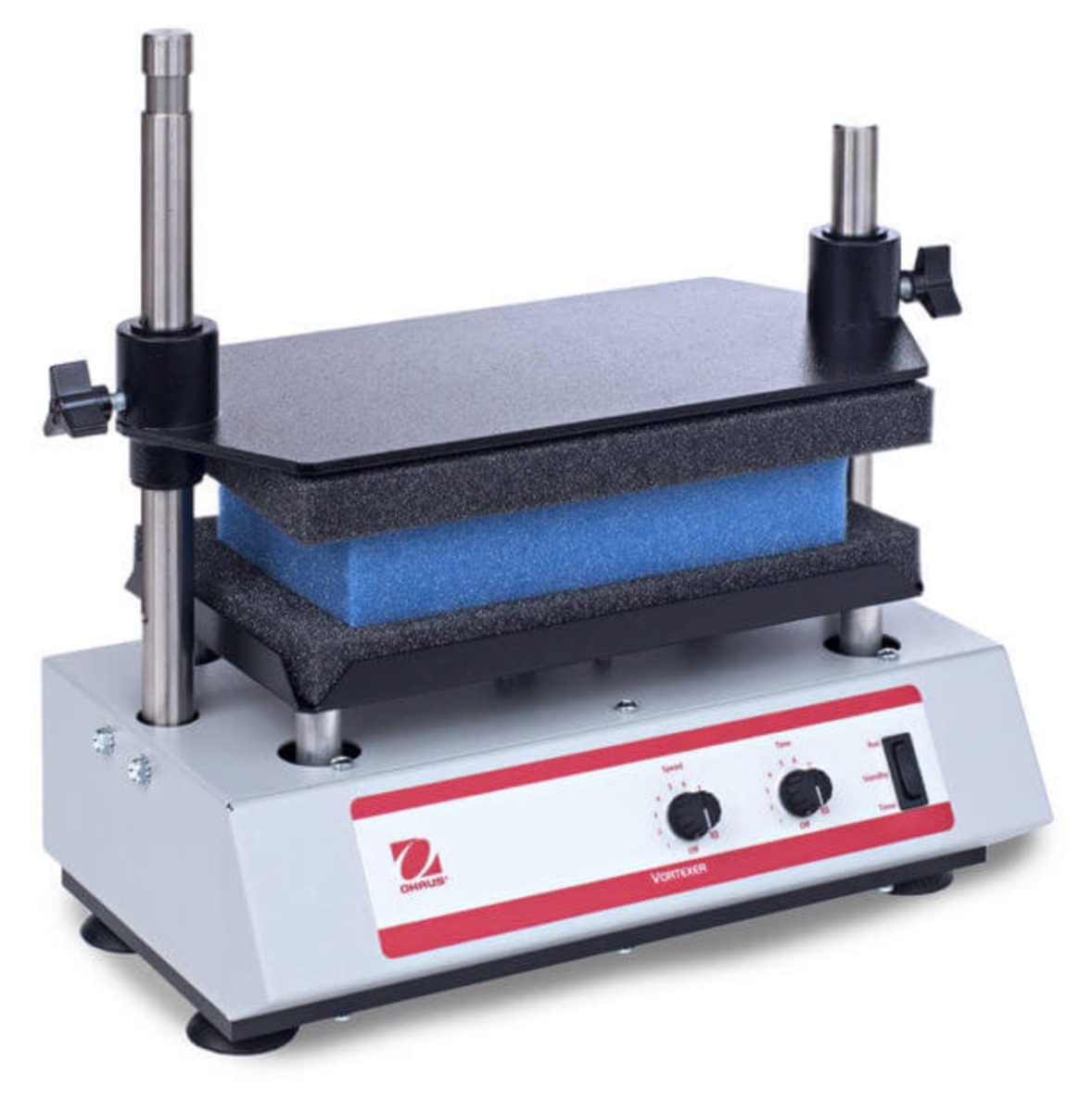

OHAUS Multi-Tube Vortexers are ideal for hands-free, high-throughput sample processing.

Interchangeable foam racks for vortexing tubes from 10 to 29 mm in diameter are available. Strong suction cup feet reduce motion and prevent sliding on the work surface for safe operation in the lab. Digital models offer exact speed control for applications that demand repeatable results. Non-digital variable speed models are an economical alternative.

Features

Easily process up to 50 samples at one time - the Multi-Tube Vortex Mixer can be customized for your application with six different tube racks and a post- extension kit.

The Multi-Tube Vortex Mixers feature either an easy to clean one-piece stainless steel housing that is perfect for clean rooms or a painted steel version for a more economical option.

For challenging samples, enhance vortex action and create a more vigorous mix with the programmable pulse mode on the digital models. Adjust the pulse-on/pulse-off time interval to customize operation.

Applications
Suspensions, genotyping, high-throughput DNA and RNA testing in clinical labs

Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models)

Operation
Detachable 3-wire cord and plug (included)

Construction
Stainless steel foam rack for (50) 12 mm diameter tubes (included), interchangeable foam racks for vortexing tubes from 10 - 29 mm in diameter

Specifications

Control	Analogue
Duty Rating	Continuous
Orbit	0.1 in (3.6 mm)
Speed Range	1200 rpm – 2400 rpm
Capacity	4.5 kg
Timer	Not Applicable
Dimensions	9.5 in x 16 in x 15.1 in (241 mm x 406 mm x 384 mm) (LxHxW)
Net Weight	41 lb (18.7 kg)
Power	120V, 5A, 50/60Hz
Power Consumption	100 W
Safety Certification	TUV
Tray Size	7.25 in x 12.25 in (184 mm x 311 mm) (LxW)
Working Environment	39 - 104°F, 20% to 80% RH, non-condensing (4 - 40°C, 20% to 80% RH, non-condensing)
