TitroLine 5000/20 YSI Autotitrator Basic Unit

logo

ERP
YSI-285230100
Regular Price CA$10,499.00 Special Price CA$9,449.10
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

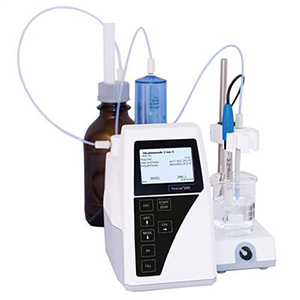

This new TitroLine® 5000 automatic titrator combines a syringe burette and pH/mV meter plus integrated intelligence. This intelligence carries out the parameterization of the method for you. The new Titrator TitroLine® 5000 offers even more features than its predecessor and is even more convenient to use.

The TitroLine® 5000 does not require special training or deeper knowledge is not necessary for precise and quick results! Use the TitroLine® 5000 to achieve:

  • High-resolution pH/mV-measurement input for pH-, ORP-, silver - and further mV-electrodes
  • Pt 1000 and NTC 30 temperature measurement input for automatic temperature compensation
  • Pre-installed standard methods for FOS/TAC, alkalinity, total acidity in drinks, chloride etc.
  • Linear and dynamic titration to equivalence points
  • Titration to pH and mV-end points

Typical applications of water/wastewater and environmental analysis:

  • pH-value, alkalinity (p+m-value)
  • FOS/TAC (see titration curve and result screen as an example)
  • Total Kjeldahl nitrogen
  • Permanganat index and COD
  • Chloride in wastewater

Typical applications of food analysis:

  • Salt content (chloride, sodium chloride)
  • pH-value, total acidity in wine, drinks and other food products
  • Ascorbic acid
  • Protein determination (Kjeldahl-nitrogen in milk and dairy products)
  • Iodine and peroxide value
Accuracy

according to DIN ISO 8655, part 3: accuracy: < 0.15 %, precision: < 0.05 %

Certifications ISO 8655, part 6, EMC: 2004/108/EG; safety EG- Directive 2006/95
Connectivity / Communications 2 × USB (1 USB-A and 1 × USB-B), 2 × RS-232-C
Display

3.5 inches - 1/4 VGA TFT graphic colour display with 320 x 240 pixels

Keypad The unit is operated using the keys on the device itself, the controller TZ 3880 and optional PC-keyboard (USB)
Measurement Method / Channels pH/mV-input with elektrode socket according to DIN 19262. BNC via adapter. Reference electrode 1 x 4 mm socket
Measurement Range

0.005-0.025 ml (depending on dosing unit)

Power 100 -240 V~; 50/60 Hz, power input 30 VA
Resolution

8000 steps

Size

135 x 310 x 205 mm (W x H x D), including dosing unit, without stirrer, 2.3 kg (without stirrer), 2 kg
