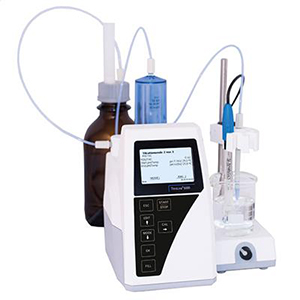

TitroLine 5000/20 YSI-C Autotitrator Basic Unit*

ERP
YSI-285230610
Available
Regular Price CA$10,839.00 CA$9,755.10
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

The TitroLine® 5000 has always been the first choice if you were looking for a very easy-to-use automatic titrator for any application. Special training or a deeper knowledge of automatic titration is not necessary to get precise and quick results. That and much more is exactly what the TitroLine® 5000 stands for.

Tested and certified for ISO 8655, and includes a manufacturer's certificate.

*Not compatible with TitriSoft software.
*Magnetic stirrer included. Other accessories and electrodes sold separately.

  • Full colour display that can be easily viewed from a distance and at extreme angles
  • Pre-installed standard methods and up to five unique user methods
  • Can program automated calculations and exportation to a printer or USB memory device
  • High resolution pH/mV-measurement input for pH-, ORP-, silver - and further mV-electrodes
  • Pt 1000 and NTC 30 temperature measurement input for automatic temperature compensation
  • Linear, dynamic, and equivalence/end point titration methods available
  • ISO 8655 Certified (certificate included)
Accuracy

systematic error 0.15 %, random error 0.05 % in compliance with EN ISO 8655-6

CertificationsISO 8655, part 6, EMC: 2004/108/EG; safety EG- Directive 2006/95
Connectivity / CommunicationsUSB-A, USB-B, RS-232-C
Display

0000,000...9999,999 ml, 0.005-0.025 ml (depending on dosing unit)

KeypadThe unit is operated using the keys on the device itself, the controller TZ 3880 and optional PC-keyboard (USB)
Measurement Method / ChannelspH/mV-input with Electrode socket according to DIN 19 262 or additional with BNC socket insert (Z 860)
Measurement Range

0.005-0.025 ml (depending on dosing unit)

Power100 -240 V~; 50/60 Hz, power input 30 VA
Size

135 x 310 x 205 mm (W x H x D), including dosing unit, without stirrer, 2.3 kg (without stirrer)

Burette Size

20 ml
