Bellco Glass, Inc - Bell-Flo Complete,500mL-70mm . (Each)

ERP
BEL-1965-80575
Loading...
Regular Price CA$2,087.00 Special Price CA$1,773.95
EA
Add to Wish List Add to Compare

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

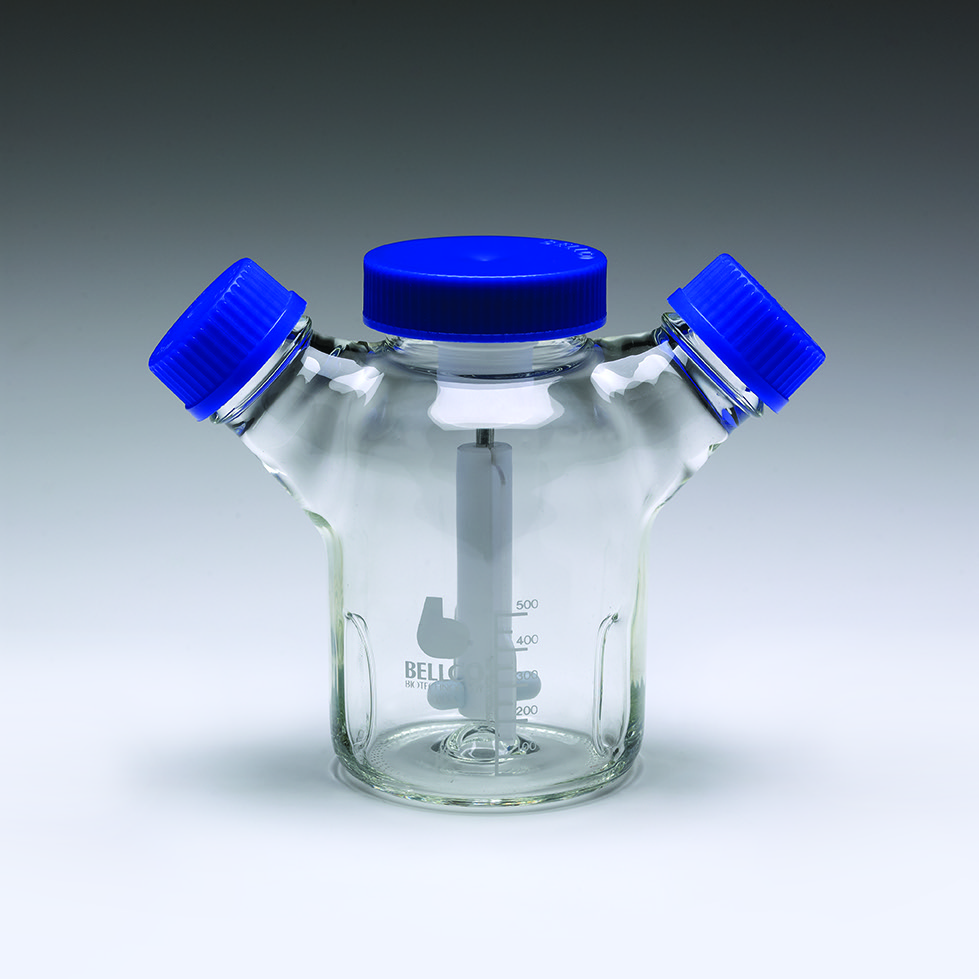

500mL Bell-Flo™ Complete
Flask Specifications:
Material: Type 1 Class A Borosilicate Glass
Dimensions: 110mm OD x 175mm Overall Height, 214mm across sidearms
Two 45mm sidearms angled 45⁰ off the centerline
One 70mm Screw Thread Center Neck
Indented Bottom: Prevents dead spot under impeller
Side Baffles: Three equally spaced baffles, 45mm long x 6mm deep
Supply with: Two 45mm PP Blue Screw Caps & PP Blue Pouring Rings
Internal Overhead Bearing Assembly Specifications:
Consists of screw cap, cap seal, sealing ring, compression washer, ball bearing spacer, ball bearing, bearing thimble, magnet, o-ring, magnet holder, shaft, & paddle
70mm PP Blue Screw Cap: 82.6mm OD x 22.2mm tall
PTFE Cap Seal: 66.7mm OD x 24.6mm long
Blue Silicone Sealing Ring: 66.7mm OD x 47.6mm ID x 4.8mm thick
White Silicone Compression Washer: 27.0mm OD x 12.7mm ID x 1.6mm thick
PTFE Ball Bearing Spacer: 19.1mm OD x 12.7mm ID x 22.4mm deep
PBT & SST Ball Bearing: 19.1mm OD x 6.4mm ID x 7.1mm deep
PTFE Bearing Thimble: 31.8mm OD x 19.1mm ID x 38.1mm long
PTFE Magnet: 9.5mm OD x 41.3mm long
Silicone O-ring: 7.9mm OD x 4.8mm ID
PTFE Magnet Holder: 19.1mm OD x 95.3mm long
316L SST Shaft: 6.4mm OD x 130.2mm long
PTFE Paddle: 54.0mm wide x 95.3 long x 1.6mm thick
