Labculture Class II Type A2

Labculture Class II Type A2

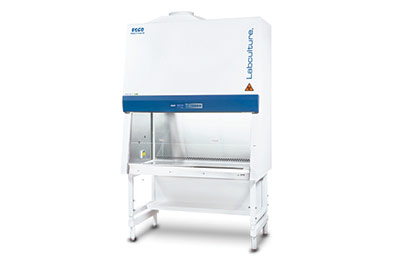

Esco Labculture® Class II Type A2 Biological Safety Cabinet (E-Series) blends the latest generation of energy-efficient DC ECM motor technology with Esco's experience of more than 25 years in biosafety cabinet design. The Labculture® combines a multitude of design, construction, and proprietary technological considerations to provide optimum operator, product, and environmental protection. Utilizing 2 minipleat ULPA (Ultra Low Penetration Air) filters which operate at a typical efficiency of 99.999%, these filters surpass the conventional HEPA (High Efficiency Particulate Air) filters in contamination protection. Esco Labculture® features a 10-degree sloped front for maximum operator comfort. A single-piece stainless steel work zone and the absence of screws or connectors in the work zone facilitates ease-of-cleaning after experiments. The Isocide™ powder coating finish prevents microbial/bacterial growth on the exterior and delivers a sleek, elegant appearance fitting for the leader in biosafety cabinet technology.

Key Benefits:

  • Energy-efficient, using the latest-generation DC ECM motor
  • Established safety, as the most certified BSC in world to: NSF/ANSI 49, EN 12469, CFDA YY0569, JIS K3800
  • Ergonomic, with arm rest, angled front, and ADA-compliant control pad


Features

  • Latest-generation DC ECM Motor made in USA, as the heart of the cabinet
  • Negative pressure plenum surrounds the contaminated positive pressure plenum. No fabirc bags are used
  • Long-life ULPA filters for supply and exhaust (per IEST-RP-CC001.3) with 99.999% efficiency for particle size between 0.1 to 0.3 microns
  • Coved single-piece work surface contains spillage. The absence of screws or connectors in the work zone facilitates ease of cleaning and decontamination
  • One-piece back wall with radiused cove corners to ensure thorough cleaning and decontamination
  • Angled supply filter matches cabinet profile to achieve best downflow uniformity
  • Esco Sentinel™ Gold Microprocessor with large blue LCD, which simultaneously shows all safety parameters on a single screen
  • Quickstart mode, to turn the blower and lights on/off, by moving the sash window to correct position
  • RS 232 data output port enables remote monitoring of cabinet opertaing parameters
  • Frameless sash that is easier to clean
  • Ergonomically-angled front improves reach and comfort
  • Angled-down display and control pad that is ADA-compliant
  • Raised airflow grille maintains safety by preventing blockage
  • Esco ISOCIDE™ antimicrobial coating on all painted surfaces minimizes contamination
  • Enhanced side-captured zones optimize containment
  • Night setback mode / standby mode reduces power consumption while maintaining containment


Models

Model No.

External Dimensions

Internal Dimensions

Airflow Velocity (Inflow)

Airflow Velocity (Downflow)

Electrical

LA2-3A2-E

1115 x 852 x 1540 mm

(44.0" x 33.5" x 60.6")

970 x 623 x 670 mm

(38.2" x 24.5" x 26.4")

0.53 m/s

105 (fpm)

0.35 m/s

70 (fpm)

115 VAC

50/60 Hz

LA2-4A2-E

1420 x 852 x 1540 mm

(56.0" x 33.5" x 60.6")

1270 x 623 x 670 mm

(50.0" x 24.5" x 26.4")

115 VAC

50/60 Hz

LA2-5A2-E

1725 x 852 x 1540 mm

(68.0" x 33.5" x 60.6")

1570 x 623 x 670 mm

(61.8" x 24.5" x 26.4")

115 VAC

50/60 Hz

LA2-6A2-E

2030 x 852 x 1540 mm

(80.0" x 33.5" x 60.6")

1870 x 623 x 670 mm

(73.6" x 24.5" x 26.4")

0.33 m/s

65 (fpm)

115 VAC

50/60 Hz

LA2-8A2-E

2600 x 852 x 1540 mm

(102.4" x 33.5" x 60.6")

2440 x 623 x 670 mm

(96.0" x 24.5" x 26.4")

115 VAC

50/60 Hz


Accessories

Mandel offers a variety of options and accessories to meet local applications. Contact Inside Sales or your local Sales Representative for ordering information.

Support Stands

  • Fixed height, available 711 mm (28") or 864 mm (34")
    • With casters
  • Adjustable height, hydraulic range 711 mm to 762mm (28" to 30") or 864 mm (34")
    • With levelling feet
  • Telescoping Feet Stand, manually adjustable 711mm to 914mm (28" to 36") by pins
  • Hydraulic Stand, electrically adjustable 711mm to 914mm (28" to 36")


Electrical Outlets and Utility Fixtures

  • Universal Service Fixture Kit (Air, Gas, Vacuum)
  • Thimble exhaustion
  • Air tight damper; 9.8" x 9.8" (D x H); fits inside 10" duct


Cabinet Accessories

  • Anti Blow Back Valve
    • Automatically shuts duct, preventing back flow in the duct, 10" diameter
  • Plastic decontamination bag for formalin decontamination on all BSC
  • Air tight cable port, installed on the right side wall
  • PVC armrest
    • Improves operator comfort, easy-to-clean. 712mm (28") standard size
  • Ergonomic foot rest
    • Angled, helps maintain proper posture
    • Adjustable from 3" to 11" in 1:increment
    • Black rubber matte
  • IV bar, with hooks
    • Maximum load is 6Kg. (13lbs)
  • Microscope viewing device
    • Factory installed; specify when ordering

Certificates

pdf CE Certificate
pdf NSF Certificate
pdf NSF Listed Cabinets July 31, 2014
pdf UL Certificate
pdf UL Test Report

*NSF Certified Models: LA2-4A1-E, LA2-4A2-E, LA2-4A3-E, LA2-5A1-E, LA2-5A2-E, LA2-5A3-E, LA2-6A1-E, LA2-6A2-E, LA2-6A3-E
