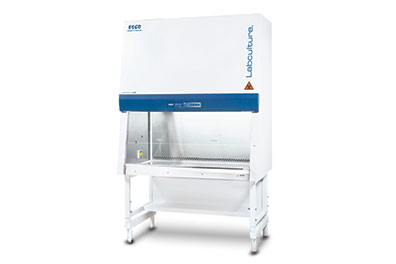

Labculture Class II Type B2 (Total Exhaust)

Labculture Class II Type B2 (Total Exhaust)

Operator, Product, and Environmental protection against Microbiological Agents and Chemical Fumes

Incorporating all the latest design features available on Esco's NSF-listed Labculture® Class II Type A2 biosafety cabinet, Esco Labculture® Class II Type B2 biosafety cabinets are designed to provide operator, product, and environmental protection in experiments where recirculation of filtered air is prohibited, most likely due to the presence of chemical fumes emitted during the process.

Chemical fumes cannot be captured by the filters and will be harmful to the operator if re-circulated in the laboratory space. Hence, Class II Type B2 cabinets have to be ducted to an external blower for total exhaust. Similar in design to the Class II Type A2 cabinet, Type B2 cabinet is suitable for experiment involving work assigned into any biosafety containment level.

NSF certified to NSF/ANSI 49


Features

  • Latest-generation DC ECM Motor made in USA, as the heart of the cabinet
  • Negative pressure plenum surrounds the contaminated positive pressure plenum. No fabric bags are used
  • Long-life ULPA filters for supply and exhaust (per IEST-RP-CC001.3) with 99.999% efficiency for particle size between 0.1 to 0.3 microns
  • Coved single-piece work surface contains spillage. The absence of screws or connectors in the work zone facilitates ease of cleaning and decontamination
  • One-piece back wall with radiused cove corners to ensure thorough cleaning and decontamination
  • Angled supply filter matches cabinet profile to achieve best downflow uniformity
  • Esco Sentinel™ Gold Microprocessor with large blue LCD, which simultaneously shows all safety parameters on a single screen
  • Quickstart mode, to turn the blower and lights on/off by moving the sash window to correct position
  • RS 232 data output port enables remote monitoring of cabinet operating parameters
  • Frameless sash that is easier to clean
  • Ergonomically-angled front improves reach and comfort
  • Angled down display and ADA-compliant control pad
  • Raised airflow grille maintains safety by preventing blockage
  • Esco ISOCIDE™ antimicrobial coating on all painted surfaces minimizes contamination
  • Enhanced side-captured zones optimize containment


Models

Model No. External Dimensions With Base Stand  External Dimensions With Optional Base Stand Internal Dimensions Airflow Velocity (Inflow) Airflow Velocity (Downflow) Electrical
LB2-3B2-E 1115 x 852 x 1610 mm
(44.0" x 33.5" x 63.3")
1115 x 852 x 2321 mm
(44.0" x 33.5" x 91.4")
970 x 623 x 715 mm
(38.2" x 24.5" x 28.1")
0.53 m/s
(105 fpm)
0.31 m/s
(60 fpm)
115 VAC
50/60 Hz
LB2-4B2-E 1420 x 852 x 1610 mm
(56.0" x 33.5" x 63.3")
1420 x 852 x 2321 mm
(56.0" x 33.5" x 91.4")
1270 x 623 x 715 mm
(50.0" x 24.5" x 28.1")
    116 VAC
50/60 Hz
LB2-5B2-E 1725 x 852 x 1610 mm
(68.0" x 33.5" x 63.3")
1725 x 852 x 2321 mm
(68.0" x 33.5" x 91.4")
1570 x 623 x 715 mm
(61.8" x 24.5" x 28.1")
    117 VAC
50/60 Hz
LB2-6B2-E 2030 x 852 x 1610 mm
(80.0" x 33.5" x 63.3")
2030 x 852 x 2321 mm
(80.0" x 33.5" x 91.4")
1870 x 623 x 715 mm
(73.6" x 24.5" x 28.1")
    118 VAC
50/60 Hz
LB2-8B2-E 2600 x 852 x 1610 mm
(102.4" x 33.5" x 63.3")
2600 x 852 x 2321 mm
(102.4" x 33.5" x 91.4")
2440 x 623 x 715 mm
(96.0" x 24.5" x 28.1")
    119 VAC
50/60 Hz


Accessories

Mandel offers a variety of options and accessories to meet local applications. Contact Inside Sales or your local Sales Representative for ordering information.

Support Stands

  • Fixed height
    • With casters:711 mm (28”) or 864 mm (34”)
  • Adjustable height
    • With levelling feet: 711 mm to 762mm (28" to 30") or 864 mm (34")
  • Telescoping Feet Stand,
    • Manually adjustable: 711mm to 914mm (28" to 36") by pins
  • Hydraulic Stand
    • Electrically adjustable: 711mm to 914mm (28" to 36")


Electrical Outlets and Utility Fixtures

  • Universal Service Fixture Kit (Air, Gas, Vacuum)
  • Thimble exhaustion
  • Air tight damper; 9.8" x 9.8" (D x H); fits inside 10" duct


Cabinet Accessories

  • Anti Blow Back Valve
    • Automatically shuts duct, preventing back flow in the duct, 10" diameter
  • Plastic decontamination bag for formalin decontamination on all BSC
  • Air tight cable port, installed on the right side wall
  • PVC armrest
    • Improves operator comfort, easy-to-clean. 712mm (28") standard size
  • Ergonomic foot rest
    • Angled, helps maintain proper posture
    • Adjustable from 3" to 11" in 1:increment
    • Black rubber matte
  • IV bar, with hooks
    • Maximum load is 6Kg. (13lbs)
  • Microscope viewing device
    • Factory installed; specify when ordering


Certifications

pdf CE Certificate
pdf NSF Certificate
pdf NSF Listed Cabinets July 31, 2014
pdf UL Certificate
pdf UL Test Report

*NSF Certified Models: LA2-4B1-E, LA2-4B2-E, LA2-4B3-E, LA2-5B1-E, LA2-5B2-E, LA2-5B3-E, LA2-6B1-E, LA2-6B2-E, LA2-6B3-E
