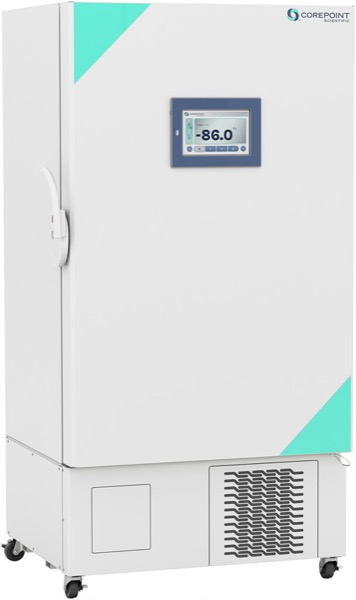

Ultra Low Temperature Touchscreen Freezer Dual Voltage 21 Cu. Ft. One solid exterior door, right hinged, not reversible; Five insulated inner doors. Can accommodate 400 2" boxes (25 UF442 racks, sold separately). Five (5) year parts and labor warranty. Se

Storage Capacity

21 Cu. Ft. Capacity

Door

One solid exterior door, right hinged, not reversible

Inner Door(s)

Five insulated inner doors

Shelves

Four adjustable, stainless steel standard, tested to 160 lbs. (optional configurations available)

Mobility and Levelling

Four heavy duty swivel casters with locks

External Probe Access

1/2” diameter port; access from back of unit to interior left side

Insulation

Foamed-in-place EPA compliant high density urethane foam

Exterior Material

Powder coated Steel

Warranty

Five (5) year parts and labor warranty. Seven (7) year compressor warranty

Product Weight (lbs.)

680

Rated Amperage

10A (120V), 6A (240V)

Power Plug/Cord

Two detachable cords supplied, min. 8’ length: 120V (NEMA 5-15 Plug) and 240V (NEMA 6-15 Plug)

Electrical Requirement

Dual Voltage 110-120V 15A (minimum) or 208-240V AC 15A (minimum)

Compressor

Two ea. variable speed hermetic reciprocating

Refrigerant

R290 / R170

Controller technology

Microprocessor with colour touchscreen (11in) input and display, C° or F°

Battery Backup

12V high capacity battery for controller and touchscreen display: temperature monitoring, alarms, and event logging active

Digital Communication

4-20mA output for temperature monitoring

Temperature setpoint range

-86°C to -50°C

External alarm connection

State switching remote alarm contacts

Alarms

Audible and Visual Alarms: customizable sounds and volumes; mute with visual persistence; ring-back functionality re-engages audible alarm after pre-set delay if alarm condition persists. Adjustable delays for door, temperature, power loss.
