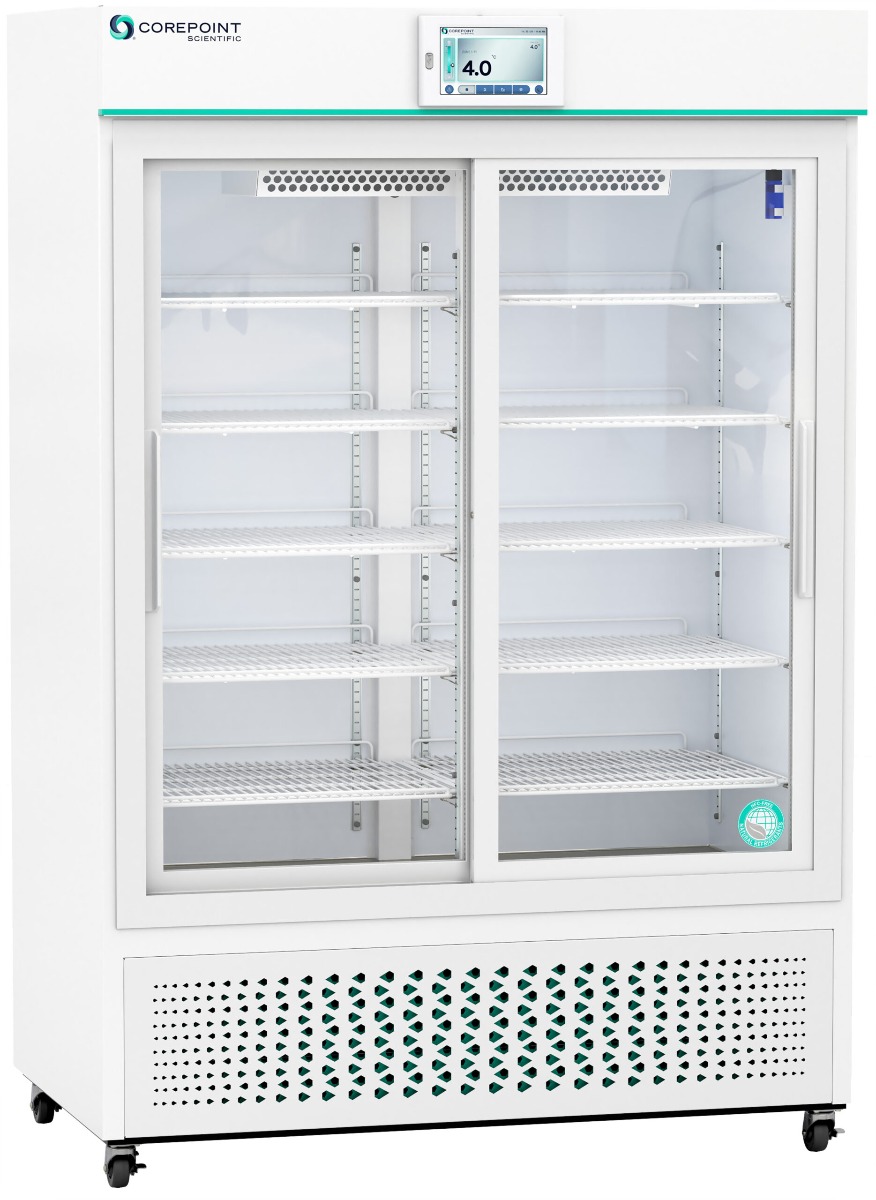

Touchscreen Glass Door Laboratory Refrigerator with Variable Speed Compressor 47 Cu. Ft. 2°C to 15°C. 110 - 120V AC, 15A breaker, NEMA 5-15 receptacle. Three (3) years parts and labor warranty, Seven (7) years compressor warranty.

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.
Free Technical Support
In-depth and personal over-the-phone support at no cost.
Quality Parts & Accessories
Mandel uses manufacturer-specified parts for all repairs and maintenance.
Details
These premium touchscreen refrigerators offer precise temperature control and advanced digital monitoring, ideal for clinical and research settings.
They feature variable speed compressor technology for exceptional performance and energy efficiency. Experience an intuitive colour touchscreen controller, offering multi-layered access and data logging capabilities. Protect your samples with forced draft air circulation and customizable alarms with remote contacts.
Enjoy the benefit of natural, hydrocarbon refrigerants for energy savings and a greener laboratory footprint. This refrigerator is constructed with durable powder-coated steel, glass door transparency, a keyed access lock, LED interior lighting, and adjustable interior shelving.
Also included is a comprehensive 3-year parts and labour warranty with a generous 7-year compressor warranty to protect your investment. With these refrigerators, you’ll increase performance and maximize efficiency in your lab.
Specifications
Cubic Footage |
31 to 49 Cu. Ft. |
|---|---|
Temperature Setpoint |
4°C (39°F) |
Door Type |
Glass Sliding |
Door Count |
2 |
Storage Capacity |
47 Cu. Ft. |
Door |
Two (2) sliding glass doors, self-closing |
Shelves |
Eight (8) adjustable shelves (adjustable in 1/2" increments) |
Mobility and Levelling |
Swivel casters - locking front casters |
Interior Lighting |
LED interior lights are safety shielded and switch controlled |
External Probe Access |
3/4" probe access port on rear wall |
Insulation |
Cabinet is foamed-in-place with EPA compliant high density urethane foam |
Exterior Material |
White powder coated steel |
Access Control |
Keyed door lock |
Warranty |
Three (3) year parts and labour warranty, Seven (7) year compressor warranty |
Product Weight (lbs.) |
452 |
Rated Amperage |
3 |
Power Plug/Cord |
NEMA 5-15P plug |
Electrical Requirement |
110 - 120V AC, 15A breaker, NEMA 5-15 receptacle |
Compressor |
Hermetic, variable speed |
Refrigerant |
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant) |
Air Flow |
Forced draft air circulation, patented air flow technology |
Defrost |
Cycle Defrost |
Maximum temperature variation (Cabinet air) |
+/- 1.5° C |
Stability (Simulator ballast) |
+/- 0.3° C |
Controller technology |
Microprocessor with color touchscreen (8in) input and display, C°/F° switchable, resolution is 0.1° C/0.2° F |
Display |
8" touchscreen featuring: Security and Access: Multi-level password protection: User, Supervisor, and Admin roles for access and control. Advanced controls: Customizable passwords/PINs: Ensures tailored access for your team. Calibration adjustments: fine-tune temperature offsets for precise measurements. visual and user interface: intuitive touch screen: pinch-to-zoom, scrollable graphs, and customizable display options. Adjustable display settings: screen brightness, real-time temperature comparison to alarm points. and selectable °C/°F display with 0.1°C/0.2°F resolution. |
Battery Backup |
High capacity 12V battery for controller temperature and alarm display and logging only, no cooling active |
Digital Communication |
4-20mA Output |
Access |
Keyed door lock |
Temperature setpoint range |
2° C to 15° C |
Display probe |
Product simulator bottle with glass bead media |
External alarm connection |
Remote alarm contacts |
Alarms |
Audible & Visual Alarms: customizable sounds and volumes; silent mode with visual persistence. Alarm delays: Adjustable settings for door, temperature, and power loss alarms to prevent nuisance alerts. Ring-back functionality. Audible alarms re-engage after a preset delay if the condition persists. |
Exterior Width (in.) |
54.125" |
Exterior Depth (in.) |
32.5" |
Exterior Height (in.) |
81.75" |
Interior Width (in.) |
49" |
Interior Depth (in.) |
23" |
Interior Height (in.) |
48.75" |
Disclaimer |
Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure |
