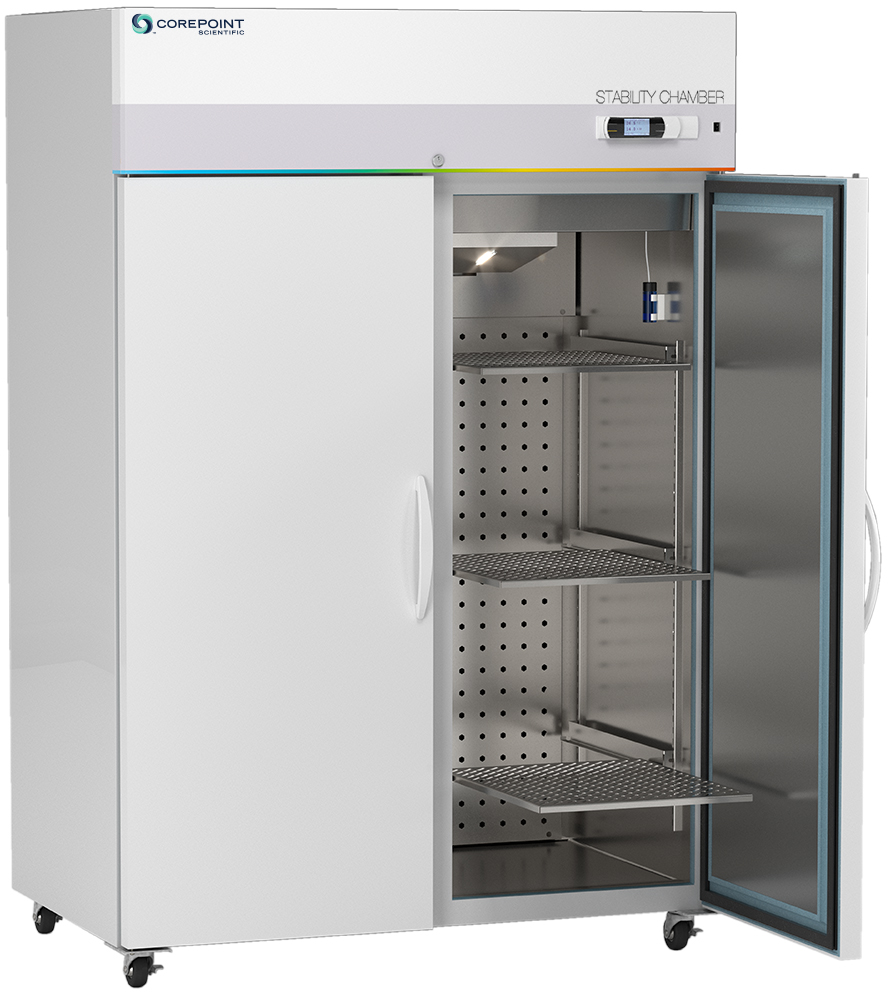

Corepoint Scientific Temperature and Humidity Stability Chamber Double Solid Door 49 Cu. Ft.

logo

ERP
NOR-NSRI492WSW/0H
CA$51,434.00
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

The Temperature and Humidity Stability Chambers are designed to meet the demanding requirements for scientific and laboratory research. Advanced engineered design incorporates the latest in cabinet, refrigeration, temperature control and monitoring features. Provides energy efficient, convenient, safe and reliable performance for optimal storage temperature environments necessary for a wide range of life science, pharmacy, biological, medical, clinical, and industrial applications.

The products are ETL Listed and include an 18 month parts & labor warranty + additional 3-year compressor parts warranty.

Nor-Lake Scientific is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

  • Temperature setpoint range: 4°C to 70°C
  • Temperature control: +/- 0.1°C
  • Temperature stability: +/- 0.5°C from 4°C to 70°C (range dependent per test protocol)
  • Temperature uniformity: +/- 1°C from 4°C to 70°C (range dependent per test protocol)
  • Humidity set point range: 15 to 95% RH
  • Humidity control: +/- 0.1%RH
  • Humidity stability: +/- 3% RH (range dependent per test protocol)
  • Cabinet is foamed-in-place with EPA compliant high density polyurethane foam insulation
  • White-powder coated steel exterior
  • Stainless steel interior
  • Plenum air distribution
  • Floor drain
  • Top mounted, variable speed compressor
  • Hydrocarbon natural refrigerant (R290)
  • Ultrasonic humidification
  • Multi-element, independent proportional electric heating
  • Temp sensor type: NTC
  • RH sensor type: capacitive
  • Condensate evaporation
  • Shielded, switched interior LED lighting
  • Heavy duty door handles
  • Magnetic door gaskets for positive seal
  • Exterior dimensions: 54" W x 36 3/8" D x 80 3/4" H with casters;
  • 77 1/4" H without casters
  • Interior dimensions: 49 1/8" W x 25 1/2" D x 59" H
  • 115V, 60 Hz, 12.4 amps, 1/3 HP
  • ETL listed
  • Shipping weight: 594 lbs.

Proportional integral derivative (PID) controller with LCD display

  • Programmable ramp and soak
  • Process phase graphic animations
  • USB data port
  • RS-485 communication (Modbus-TRU)
  • Real time clock
  • Battery backup
  • Event logs: 100
  • Visual alarm indicator
  • Audible alarm indicator
  • Process phase specific temp alarm
  • Process phase specific humidity alarm
  • Power failure alarm
  • Sensor failure alarm
