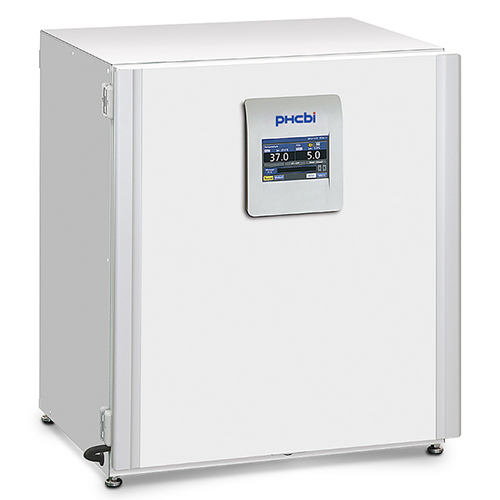

CO2 Incubator, Cell-IQ Series; 5.8 cu.ft., 115V, Touch Panel, Dual IR sensor, Molded inCusaFe interior with UV Lamp

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support
In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories
Mandel uses manufacturer-specified parts for all repairs and maintenance.
Details
The PHCbi Cell-IQ CO2 incubator design and touchscreen panel deliver exceptional ease of use, effortless cleaning and maintenance as well as outstanding performance with multilevel contamination control.
The MCO-170AICUVL-PA laboratory incubator is designed for demanding and regulated applications in the biomedical, pharmaceutical, medical research and clinical laboratory applications. The Cell-IQ CO2 incubator offers the ideal environment for all your research needs. The MCO-170AICUVL-PA unit includes a touchscreen control panel that delivers improved usability, an optimized interior structure with technology for rapid cleaning, and a proprietary infrared sensor for stabilizing temperature, CO2 and humidity levels.
Features
Uniform and Consistent Environment
The patented Direct Heat and Air Jacket system, IR2 sensor, SafeCell™ UV and inCu-saFe® work together to ensure precise temperature, CO2 levels and contamination control respectively for a precise and repeatable environment.
Rapid CO2 Recovery with IR2 Sensor
Proprietary IR2 sensor provides superior CO2 control with fast recovery without overshoot even following multiple door openings.
Time Saving Decontamination
An optional high speed decontamination system uses hydrogen peroxide (H2O2) vapor to clean the incubator chamber in under three hours. The system safely and efficiently decontaminates with a 100% kill rate with at least a six log reduction of major contaminants.
Contamination Control with SafeCell UV and InCu-saFe
PHCbi's inCu-saFe combines the germicidal properties of elemental copper with the corrosion and discoloration resistance of stainless steel to deliver passive contamination control throughout the chamber interior. The SafeCell UV lamp provides safe, active and passive contamination control of circulated air and the humidity water reservoir. SafeCell scrubs and decontaminates circulated chamber air without affecting cell cultures in situ.
Colour LCD Display
The high contrast colour LCD display allows for easy, touchscreen programming of temperature, CO2 and other internal conditions of your incubator even with gloved hands.
USB Log Function for Data Transfer and Storage
A standard USB port simplifies the storage or transfer of logged data.
Specifications
EXTERIOR DIMENSIONS | 24.4" W x 28.7" D x 35.6" H (620 x 730 x 905 mm) |
INTERIOR DIMENSIONS | 19.3" W x 20.6" D x 26.2" H (490 x 523 x 665 mm) |
INTERIOR VOLUME | 5.8 cu.ft. (165 L) |
DATA ACQUISITION | Optional analogue on cloud-based monitoring |
OUTER DOOR | Painted steel |
SHELVES | 18.5" x 17.7" (470 x 450 mm) |
ACCESS PORT | 1: Back side (1.2" (30 mm) diameter) |
INSULATION | Extruded polystyrene foam |
AIR FILTER | 0.3 um, Efficiency: 99.97 % or higher |
UV LAMP | 4W x 1 (ozone-free emission) |
NET WEIGHT | 176 lbs (80 kg) |
TEMPERATURE CONTROL RANGE | Ambient temperature +º5C to +50ºC |
TEMPERATURE UNIFORMITY | ±0.25ºC (ambient temperature: 23ºC, setting: 37ºC, CO2: 5 %, no load) |
MAXIMUM POWER CONSUMPTION | Max. 376 W |
CO2 CONTROL RANGE | 0% to 20% |
CO2 CONTROLLER | PID Control System |
CO2 GAS CONNECTION | 0.157 inch to 0.36 inch (4 mm to 6 mm) diameter tube can be connected |
CO2 GAS PRESSURE | 0.03 MPa(G) (0.3kgf/cm2(G),4.3 psi(G)) |
CO2 VARIATION | ±0.15% (ambient temperature: 23ºC, setting: 37ºC, CO2: 5%, no load) |
CO2 SENSOR TYPE | Dual filter infrared sensor |
DATA OUTPUT | USB |
DECONTAMINATION METHODS | SafeCell ultraviolet light. Optional hydrogen peroxide (H2O2) vapour |
CONTAMINATION CONTROLS | InCu-SaFe copper enriched stainless steel interior and shelves, SafeCell UV light |
DECONTAMINATION CYCLE TIME | < 3.0 Hours |
DISPLAY | LCD touchscreen |
HEATING SYSTEM | Direct Heat and Air Jacket System |
HUMIDIFYING SYSTEM | Natural evaporation with humidifying pan, 95 %R.H.±5 %R.H. |
INTERIOR SURFACES | InCu-saFe stainless steel with copper enriched alloy |
