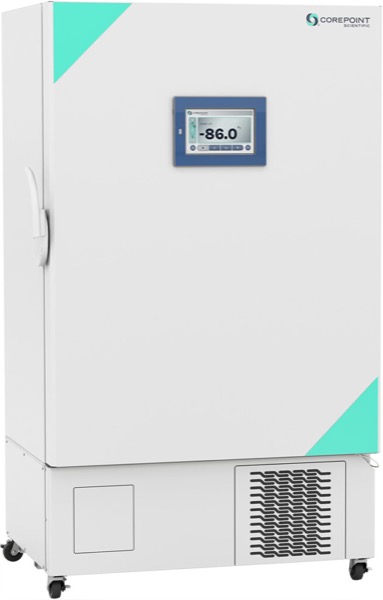

Ultra Low Temperature Touchscreen Freezer Dual Voltage 25 Cu. Ft. One solid exterior door, right hinged, not reversible; Five insulated inner doors. Qty. 480 2" boxes (30 UF442 racks) . Five (5) year parts and labor warranty. Seven (7) year compressor war

Details

Specifications

Refrigeration System

Controller, Configuration, Alarms and Monitoring

logo

ERP

NOR-CPS-HC-2586-TS

Skip to the end of the images gallery

Skip to the beginning of the images gallery

QUANTITY

CA$34,020.00

Add to Wish List Add to Compare

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

Transform your laboratory with these industry-leading ultra-low temperature freezers.

Protect your samples with steel-insulated inner doors for ultimate temperature retention down to -86°C.

Experience highly efficient variable speed compressors for energy savings and enhanced system performance. Conduct advanced data logging through intuitive touchscreen control—track real-time temperature readings, export data, and capture trends with just a few taps.

Dual voltage compatibility ensures installation flexibility, with each unit including both 115V and 230V power cords under a single part number. You can also rest secure knowing your samples are guarded by a full array of alarms—no more surprise temperature excursions.

As a finishing touch, you’ll benefit from natural hydrocarbon refrigerants for sustainability, energy efficiency, and long-term cost savings.

Together, these features are designed to push boundaries and harness the full potential of the modern ULT.

Storage Capacity	25 Cu. Ft. Capacity
Door	One solid exterior door, right hinged, not reversible
Inner Door(s)	Five insulated inner doors
Shelves	Four adjustable, stainless steel standard, tested to 160 lbs. (optional configurations available)
Mobility and Levelling	Four heavy duty swivel casters with locks
External Probe Access	1/2” diameter port; access from back of unit to interior left side
Insulation	Foamed-in-place EPA compliant high density urethane foam
Exterior Material	Powder coated Steel
Warranty	Five (5) year parts and labor warranty. Seven (7) year compressor warranty
Product Weight (lbs.)	730
Rated Amperage	10A (120V), 6A (240V)
Power Plug/Cord	Two detachable cords supplied, min. 8’ length: 120V (NEMA 5-15 Plug) and 240V (NEMA 6-15 Plug)
Electrical Requirement	Dual Voltage 110-120V 15A (minimum) or 208-240V AC 15A (minimum)

Compressor	Two ea. variable speed hermetic reciprocating
Refrigerant	R290 / R170

Product Name

Availability

List Price

Special Price

Controller technology	Microprocessor with colour touchscreen (11in) input and display, C° or F°
Battery Backup	12V high capacity battery for controller and touchscreen display: temperature monitoring, alarms, and event logging active
Digital Communication	4-20mA output for temperature monitoring
Temperature setpoint range	-86°C to -50°C
External alarm connection	State switching remote alarm contacts
Alarms	Audible and Visual Alarms: customizable sounds and volumes; mute with visual persistence; ring-back functionality re-engages audible alarm after pre-set delay if alarm condition persists. Adjustable delays for door, temperature, power loss.
