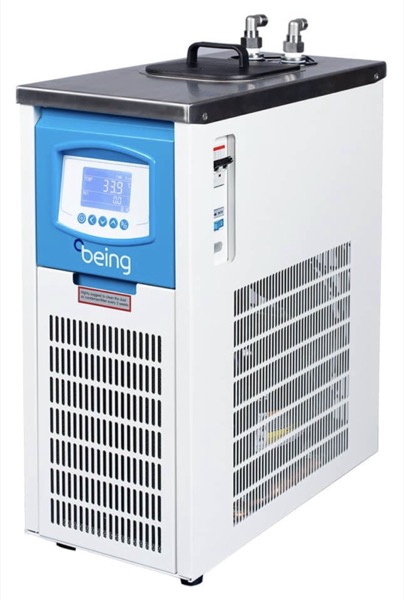

Recirculating Chiller, BRC-10, 0.5 Cu Ft (Storage Tank 15.5L), Liquid 13 L, Temp. : -20°C to 20°C, Temp Stability: ± 2°C, Refrigerant: R410A, 115VAC / 60Hz, Noise (dB): ≤55, Exterior dimension: 400 x 500 x 814 (H x W x D), Locking Casters, Warranty: 2 Yea

logo

ERP

BEI-BRC15110U

QUANTITY

CA$6,647.00

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

Features

Designed so that test results are in line with international standards DIN 12880
PID temperature controller with LCD screen provides accurate and reliable temperature control
Automatic calibration function, be able to adapt to a variety of laboratory environments

A product line breadth to meet a variety of needs
Wide range of options to meet a variety of experimental needs
Temperature/Capacity/Liquid Flow/Pressure/Control Mode/Internal Circulation/External Circulation

Preset On/Off function
Built-in power interruption protection function, automatic run after power interruption
Independent over-temperature protection meets DIN 12880 International standard requirements
Temperature deviation alarm
Over-current protection alarm

Capacity
Storage Tank (L)	15.5
Liquid （L）	13
Cooling Feature
Lowest Temp Without Load (℃)	–20℃
Temperature Range (℃)	–20℃ to 20℃
Temperature Stability (℃)	±2℃
Cooling capacity（W）@20℃	1800
Cooling capacity（W）@10℃	1500
Cooling capacity（W）@0℃	1400
Cooling capacity（W）@-10℃	1000
Cooling capacity（W）@-20℃	500
Refrigerant	R410A
Electrical
Whole unit power（W）	1300
Power Requirement	115VAC / 60Hz
Electrical Plug Type	NEMA 5-15
Safety Features	Delay, leakage, overcurrent, overvoltage
Pump
Pump type	DC Magnetic Drive Vortex
Recirculating Pump Power（W）	60
Pump Flow Rate（L/min）	17
Max. Pump Head（m）	15
Pump Max. Pressure (psi)	22 (152KPa)
Inlet/Outlet Tube OD（mm）	Ø12 (DN15)
Inlet/Outlet Fitting Type	Push-to-connect
Other Features
Feet / Caster	Locking Casters
Noise (dB)	≤55
Dimensions
Reservoir (H x W x D) (inch)	10.6 x 9.5 x 9.5
Exterior (H x W x D) (inch)	32.1 x 15.8 x 19.7
Net Weight（kg）	60
Reservoir Dimension (H x W x D)（mm）	240 x 200 x 170
Exterior Dimension (H x W x D)（mm）(including casters)	814 x 400 x 500
Supported Rotavaps（Capacity x Units）	5L x 2 or 10L x 1
SKU Number	BRC15110U
