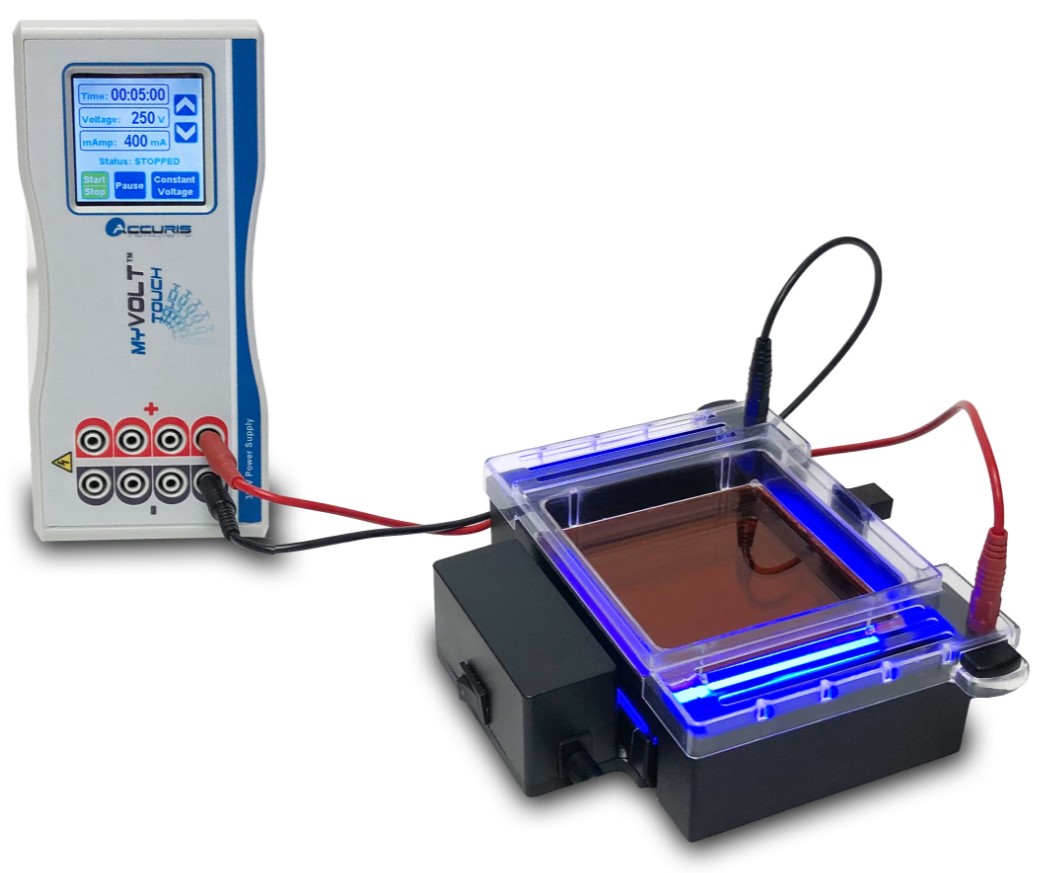

myGel InstaView Package: E1200 and E2301. Includes tank with orange filter, C1200-CS1 casting set, Mini SmartBlue Transilluminator and imaging enclosure, and E2301 touch screen power supply. 115V.

For labs that prefer to use a separate power supply, the InstaView Gel Tank is the perfect choice for running, viewing and documenting electrophoretic separations.

The InstaView Gel Tank accommodates one large (10.5x10cm) or one small (10.5x6cm) gel tray and is supplied with trays, combs and a leak-proof casting stand. The gel tank lid includes attached power leads which prevent the unit from operating without the lid properly in place.

Any standard power supply can be connected, including the Accuris myVolt™ Mini and myVolt Touch.

The InstaView Gel Tank is shaped to allow the mini LED transilluminator (included) to slide underneath. Blue light, at a wavelength of 465nm, provides excitation of common green fluorescent stains such as SmartGlow™, SYBR™ Green, and GelGreen. An orange filter is incorporated into the gel tank lid for visualizing the DNA in the gel box without any additional equipment or glasses. The transilluminator can be turned on at any time during a run to track progress, and automatically shuts off after 5 minutes.

After electrophoresis, simply place the included imaging enclosure over the InstaView Gel Tank to capture high resolution images with a smart phone. Images are easily printed or shared via email or text message.

Includes the popular MyVolt Touch Power Supply.  This versatile power supply is ideal for basic DNA electrophoresis, and can also be used for PAGE protein separations.
