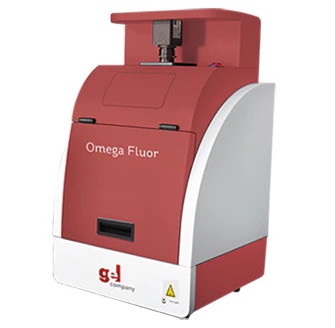

Omega Fluor(TM) Gel Documentation System, 302 nm
The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.
Free Technical Support
In-depth and personal over-the-phone support at no cost.
Quality Parts & Accessories
Mandel uses manufacturer-specified parts for all repairs and maintenance.
Details
Entry-level gel imaging system with exceptional performance and safety features.
The Omega Fluor comes standard with the basic components and exceptional safety features for DNA and protein gel imaging. With a single wavelength UV drawer that is fully integrated into a light-tight cabinet, gone are the days of modular hoods sitting awkwardly on top of light boxes. A UV-safety switch, auto UV-shutoff, and a UV-blocking viewport are standard features while a high resolution camera and focus free lens with SmartCapture Technology™ maintains the integrity of your samples with exceptional imaging performance.
For research use only.
Features
- Hands-free SmartCapture Technology™
- No camera or focus adjustment required
- Application flexibility
- Multiple excitation sources for nucleotide and protein stains
- Absorbance for Ponceau-stained membranes or Petri dishes
- Publication-quality images
- 4,096 grayscales with 5 million pixels for excellent resolution
- Universal TIFF and JPEG file formats
- Small footprint, large format
- Compact footprint fits right on your bench top
- Accommodates large format protein and nucleotide gels (i.e. PROTEAN II, Subcell 96)
Specifications
Applications - UV Imaging, White Light Imaging and Blue Light Imaging
Dye Compatibility - SYBR® Safe, SYBR family, Ethidium Bromide, Coomassie Blue, Silver Stain, AdvanStain Scarlet, SYPRO® Ruby, Oriole™ and more
Hardware - 5MP scientific grade CCD camera with a fixed lens, integrated tablet with pre-installed Image Capture Software
Software - Intuitive Omega Fluor Image Capture Software, Windows compatible
Excitation - Trans-UV (302 nm wavelength), Trans-white conversion screen (optional), Trans-blue (optional), Epi-white LEDs
Emission - Orange (included), Blue, Green, Red (optional)
Dimensions (W x D x H) - 13.6 x 12.2 x 27.0 in (35.6 x 31.8 x 63.5 cm)
Imaging Area - up to 24.0 x 20.0 cm
Weight - 49.0 lbs (22.2 kg)
