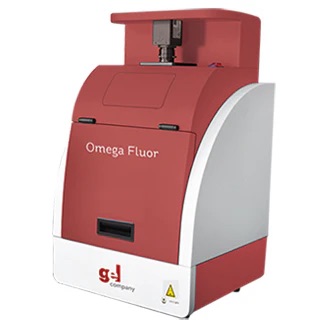

Entry-level gel imaging system with exceptional performance and safety features.

The Omega Fluor comes standard with the basic components and exceptional safety features for DNA and protein gel imaging. With a single wavelength UV drawer that is fully integrated into a light-tight cabinet, gone are the days of modular hoods sitting awkwardly on top of light boxes. A UV-safety switch, auto UV-shutoff, and a UV-blocking viewport are standard features while a high resolution camera and focus free lens with SmartCapture Technology™ maintains the integrity of your samples with exceptional imaging performance.

For research use only.

  • Hands-free SmartCapture Technology™
  • No camera or focus adjustment required
  • Application flexibility
  • Multiple excitation sources for nucleotide and protein stains
  • Absorbance for Ponceau-stained membranes or Petri dishes
  • Publication-quality images
  • 4,096 grayscales with 5 million pixels for excellent resolution
  • Universal TIFF and JPEG file formats
  • Small footprint, large format
  • Compact footprint fits right on your bench top
  • Accommodates large format protein and nucleotide gels (i.e. PROTEAN II, Subcell 96)

Applications - UV Imaging, White Light Imaging and Blue Light Imaging

Dye Compatibility - SYBR® Safe, SYBR family, Ethidium Bromide, Coomassie Blue, Silver Stain, AdvanStain Scarlet, SYPRO® Ruby, Oriole™ and more

Hardware - 5MP scientific grade CCD camera with a fixed lens, integrated tablet with pre-installed Image Capture Software

Software - Intuitive Omega Fluor Image Capture Software, Windows compatible

Excitation - Trans-UV (365 nm wavelength), Trans-white conversion screen (optional), Trans-blue (optional), Epi-white LEDs

Emission - Orange (included), Blue, Green, Red (optional)

Dimensions (W x D x H) - 13.6 x 12.2 x 27.0 in (35.6 x 31.8 x 63.5 cm)

Imaging Area - up to 24.0 x 20.0 cm

Weight - 49.0 lbs (22.2 kg)
