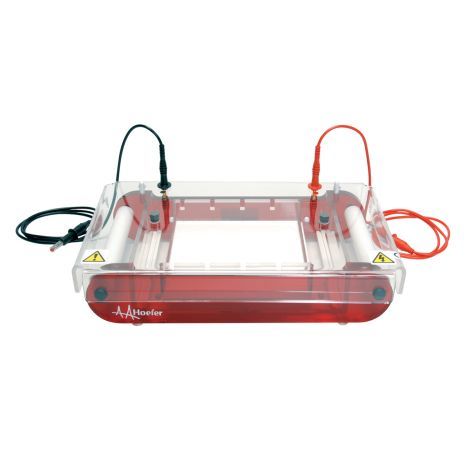

Ideal for analytical and preparative studies of nucleic acids
Features and Benefits
Color-coded and height adjustable combs—easily identify comb thickness and control well depth
Buffer recirculation ports—may be connected to a peristaltic pump for buffer recirculation during electrophoresis to maintain buffer pH and prevent ionic gradient formation
Compact tank—reduces the buffer volume required to cover the gel, providing greater control over the voltage gradient and run-time
UV-transparent running tray
Side handles—for safe and easy transportation
Includes:
Buffer Chamber Assembly; Safety Lid; High Voltage Leads; Running Tray with Silicone Gasket; 16-well combs, 2 pcs; Colored Loading Strips; Buffer Recirculation Ports
Specifications:
Gel Dimensions (w x l): 12.8 x 15 cm
Maximum Buffer Volume: 900 ml
Maximum Power Settings: 300 V, 200 mA, 60 W
Maximum Sample Capacity: 112
Unit Dimensions (w x l x h): 20 x 32 x 7 cm
Safety Certifications: EN61010-1, CE
