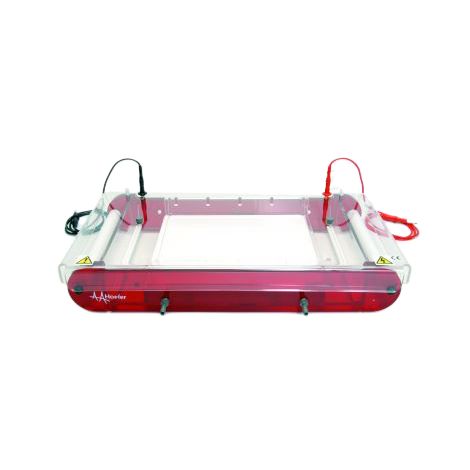

Ideal for high resolution analytical and preparative studies of nucleic acids
Features and Benefits:
Large format–20 x 20 cm gel tray is ideal for high resolution techniques
Multichannel pipette compatible combs–with a maximum 40 sample throughput–reduce gel loading time
Color-coded and height adjustable combs–easily identify comb thickness at a glance and control well depth
Buffer recirculation ports–may be connected to a peristaltic pump (see page 142) for buffer recirculation during electrophoresis to maintain buffer pH and prevent ionic gradient formation
Colored loading strips–for easy well detection when loading
UV-transparent running tray–allows the user to image the gel without risk of damage due to handling
Side handles–for safe and easy transportation around the laboratory
SUB20 Includes: Buffer Chamber Assembly; 1 mm thick, 16 well combs–2 pcs; Safety Lid; Colored Loading Strips; High Voltage Leads; Buffer Recirculation Ports–2 pcs; Running Tray w/Casting Gates
SUB20C Includes: Buffer Chamber Assembly w/Cooling Ports; 1 mm thick, 16 well combs–2 pcs; Safety Lid; Colored Loading Strips; High Voltage Leads; Buffer Recirculation Ports–2 pcs; Running Tray w/Casting Gates
Specifications
Gel Dimensions (w x l) . . . . . . . . . . . 20 x 20 cm
Maximum Buffer Volume . . . . . . . . . . 2.2 L
Maximum Power Settings . . . . . . . . . 1000 V, 500 mA, 500 W
Maximum Sample Capacity . . . . . . . . 160
Maximum Running Temperature . . . . 45°C
Indoor Use . . . . . . . . . . . . . . . . . . . . 4-40°C
Humidity . . . . . . . . . . . . . . . . . . . . . . Up to 80%
Unit Dimensions (w x l x h) . . . . . . . . 27 x 47.5 x 8 cm
Safety Certifications . . . . . . . . . . . . . . EN61010-1, CE
